Send the old number — even a worn one from a photograph — and we will identify the taper roller bearing you need and confirm stock. We hold the 30200, 32000 and 30300 metric series along with inch-series and double-row types, in SKF, FAG, NTN and Timken. These are the bearings that end up in gearboxes, wheel hubs and driveline work because conical rollers on conical raceways take heavy radial and axial load at once. They come apart, so preload is set on assembly — which also means cup and cone must be replaced as a pair.
Taper roller bearings use tapered (conical) rollers guided by a cage, running between a tapered inner ring (cone) and tapered outer ring (cup). The geometry means all tapered surfaces meet at a common apex — this pure rolling action minimises friction while enabling the bearing to carry heavy radial and axial loads simultaneously.
Unlike ball bearings, taper roller bearings are separable — the cone (inner ring, rollers, cage) and cup (outer ring) can be mounted separately and adjusted for preload or clearance during assembly. This makes them ideal for applications requiring precise axial adjustment, such as machine tool spindles and vehicle wheel hubs. As a Timken taper roller bearing stockist in India, we also supply matched imperial sets for legacy and export-standard machinery.
Light metric series with small contact angle (~12°). Best suited for predominantly radial loads with moderate axial components. Gearboxes, light vehicle axles, and fans.
Medium-duty series with higher contact angle for better axial load capacity. As a tapered roller bearing wholesaler in Pune's industrial corridor, this is the most requested series for gearbox applications.
Heavy-duty metric series with wide cross-section for maximum load capacity. Used in large industrial gearboxes, paper mill rolls, and heavy vehicle axles.
Two rows of tapered rollers in a single unit for bidirectional axial load capacity without a back-to-back pair arrangement. Compact, stiff, self-contained units for wheel hubs and gearboxes.
As an established tapered roller bearing importer for India-wide wholesale supply, we stock Timken and ISO inch-series bearings for British/American standard applications — automotive, agricultural, and legacy industrial equipment.
Four-row taper roller bearings for rolling mill applications — strip, rod, and plate mills where extreme radial loads and shock loading are the design criteria.
Standard range held in Mumbai. Non-stock and four-row sizes brought in to order.
| Parameter | Details |
|---|---|
| Metric series | 30200, 30300, 32000, 32200, 32300, 33000 |
| Imperial (inch) series | LM, L, HM, JLM, M, JL and equivalent cup/cone sets |
| Bore range | 15 mm to 200 mm standard; larger to order |
| Contact angle | Approx. 12–16° (30200/32000); steeper angles on 32300 for higher thrust |
| Configuration | Single row, double row (TDO/TDI), four row for rolling mills |
| Precision | P0 standard; P6 and P5 to order |
| Cage | Pressed steel standard |
| Brands | SKF, FAG, NTN, NSK, KOYO, TIMKEN, NACHI |
| Mounting | Separable — cup and cone fitted independently, preload set on assembly |
Reading the number. On metric taper series from 04 upward, the last two digits give the bore: multiply by 5. A 30205 takes a 25 mm shaft, a 32210 takes 50 mm. The first three digits tell you the series — 302 and 320 are the common medium-angle types, 323 is the steep-angle version for heavier thrust.
Four questions decide the specification. Answer these and we can quote from stock.
Taper rollers take axial load one way only. Light to moderate thrust suits the 30200 and 32000 series. Where thrust dominates — steep bevel gears, vertical shafts — the 32300 series with its larger contact angle is the better choice.
A single row must be opposed by something. Fitted as a face-to-face or back-to-back pair, two bearings locate the shaft in both directions and let you set preload. Back-to-back gives the stiffer arrangement and suits overhung loads.
Older imported machinery, agricultural equipment and most automotive hubs run inch-series cups and cones. If the old bearing carries an LM, HM or JLM number it is imperial, and a metric bearing will not fit. Send us the number and we will confirm.
Cup and cone wear as a matched set. Fitting a new cone into a used cup puts the rollers onto an already-worn track and the bearing will not last. Always replace both halves together.

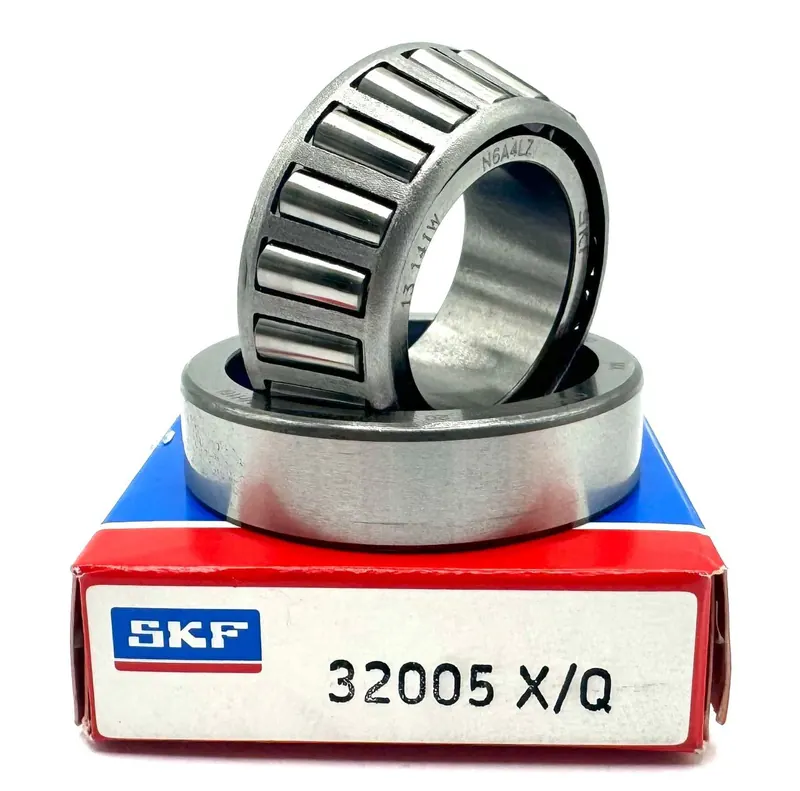

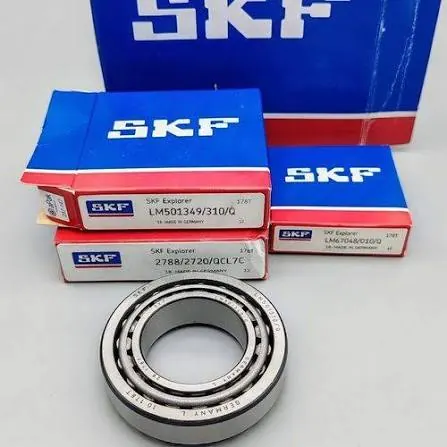

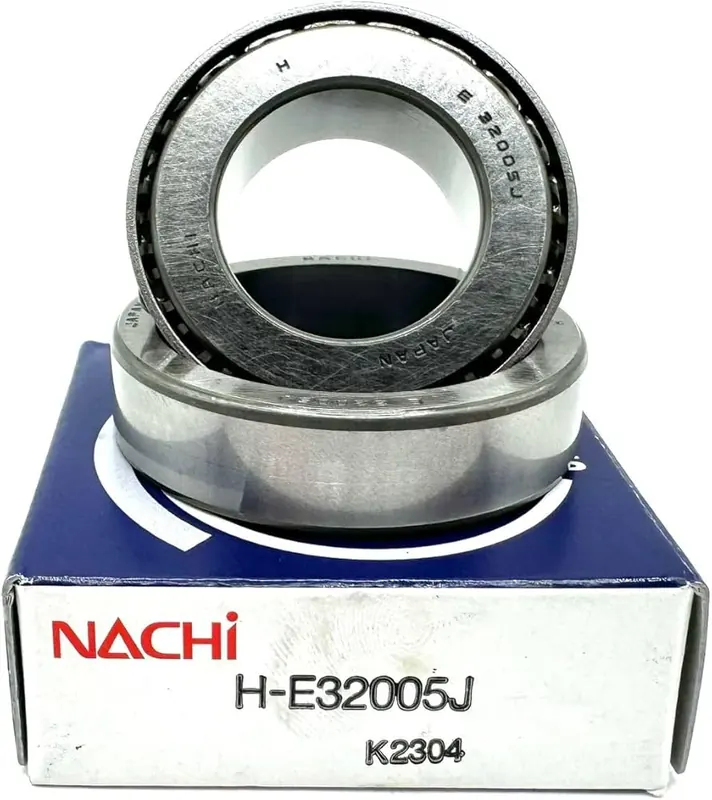

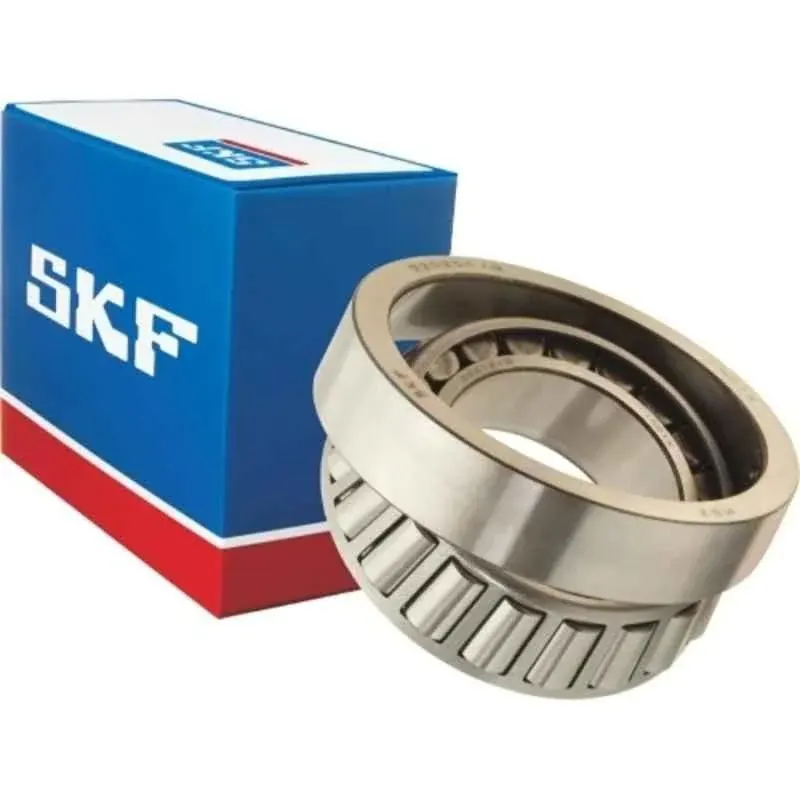

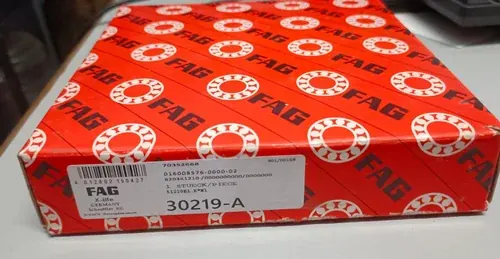

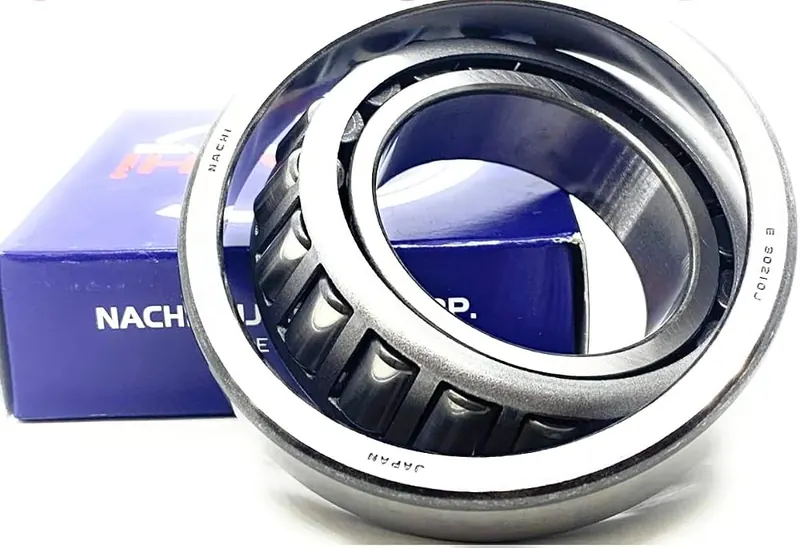

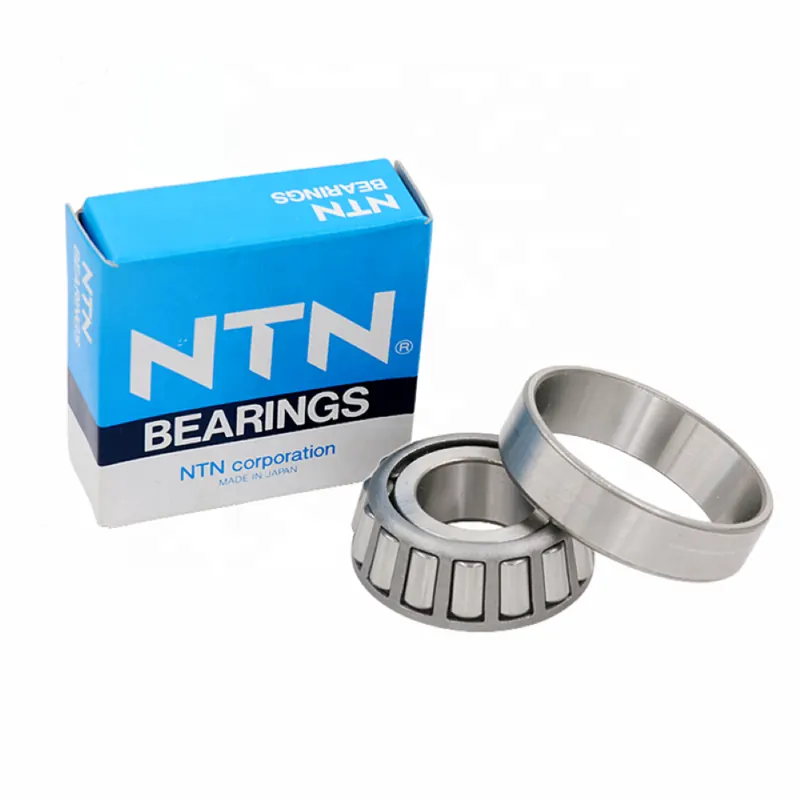

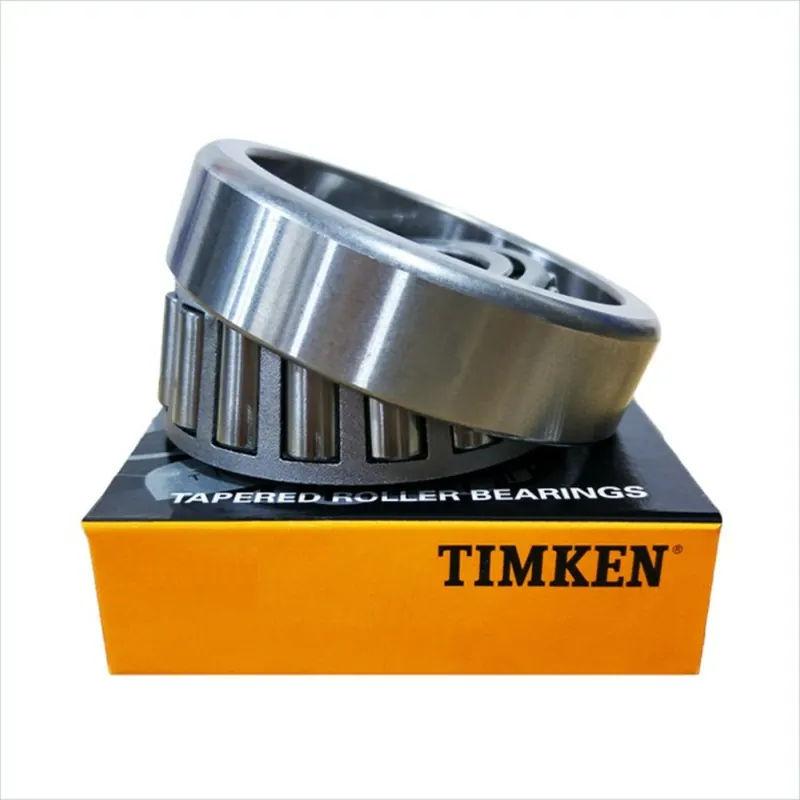

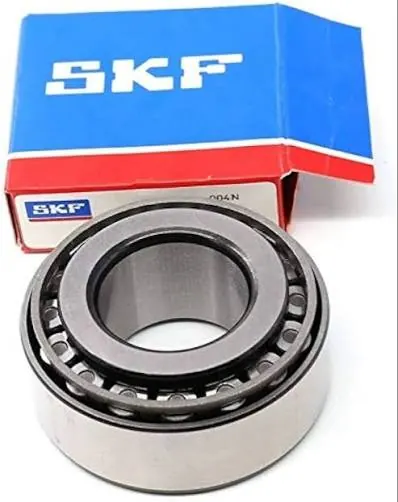

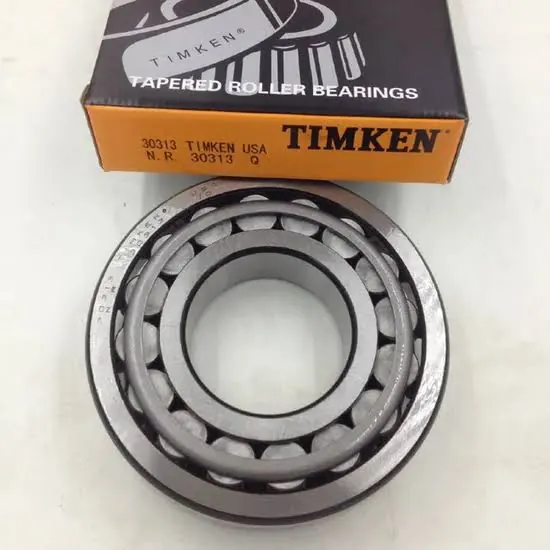

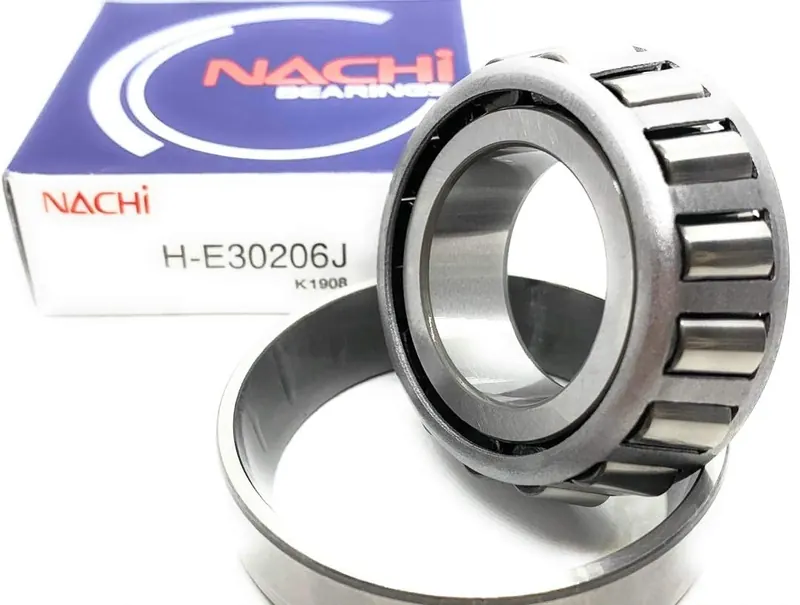

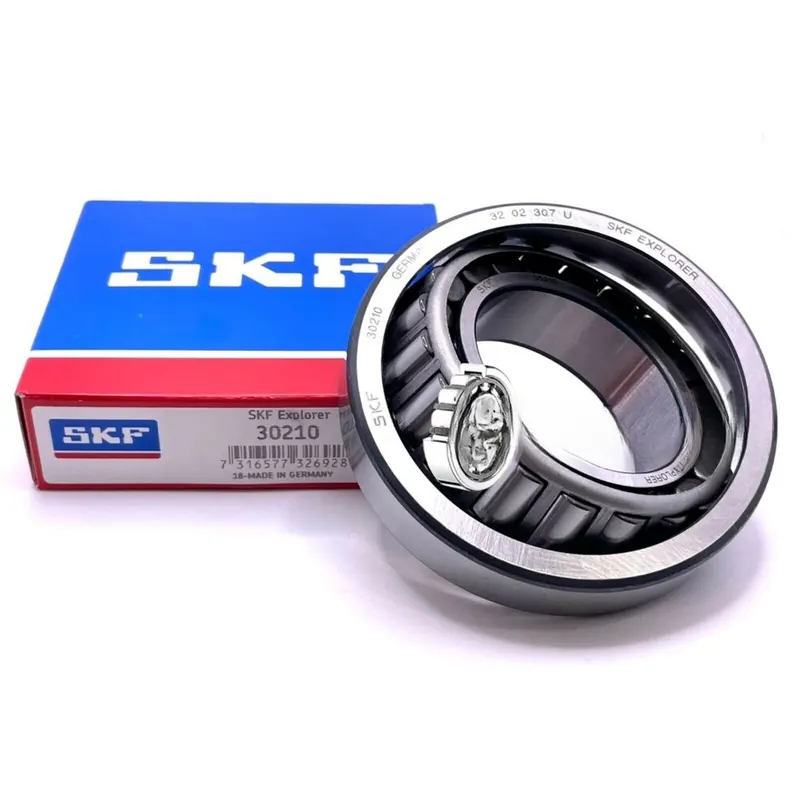

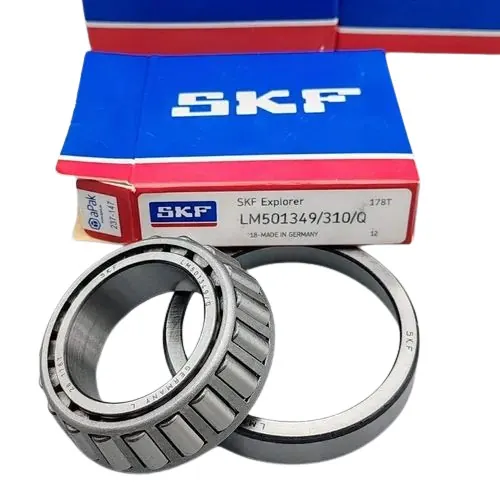

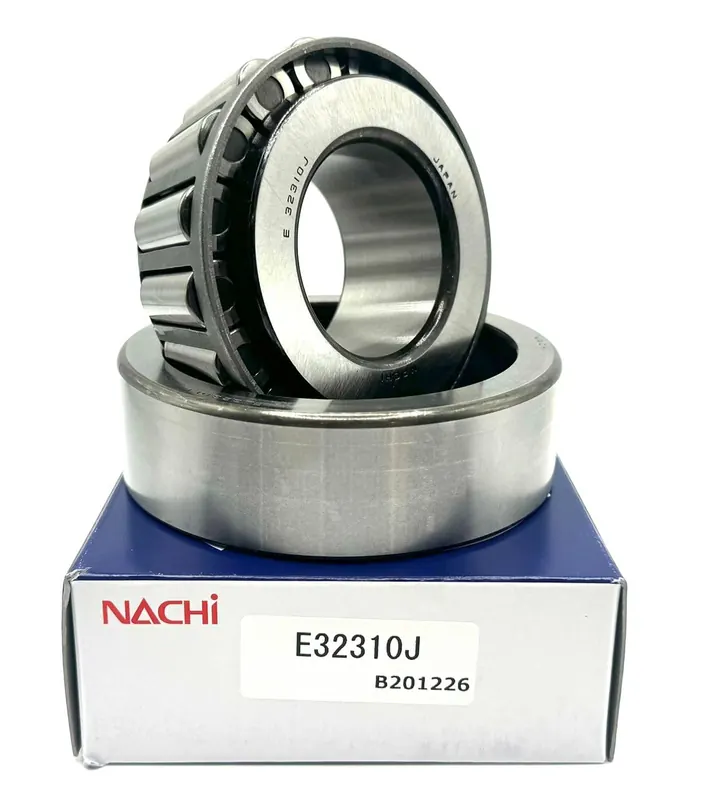

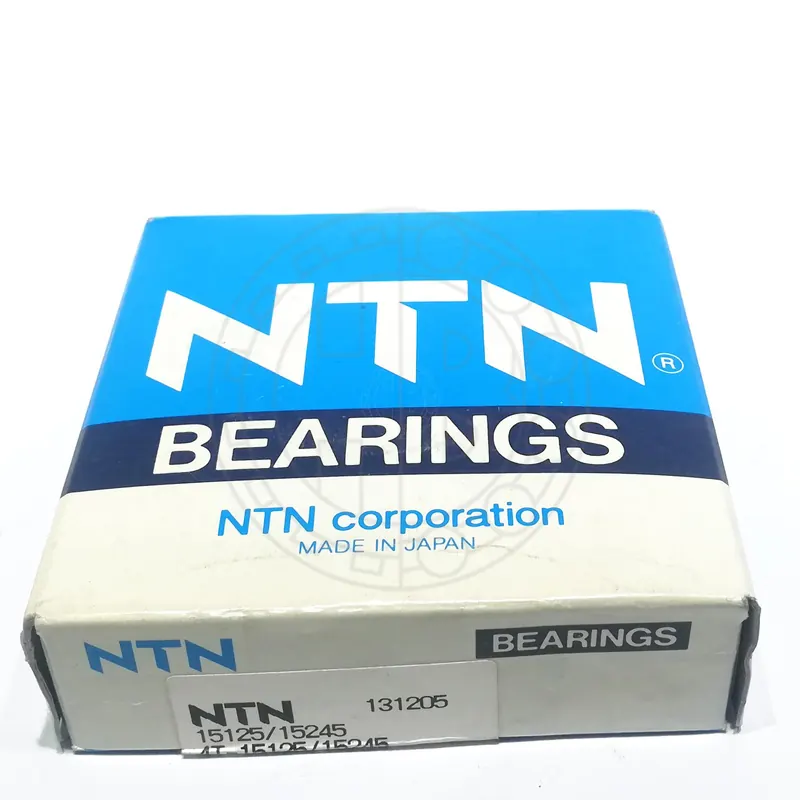

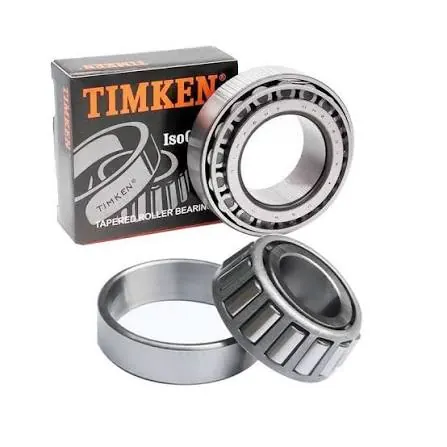

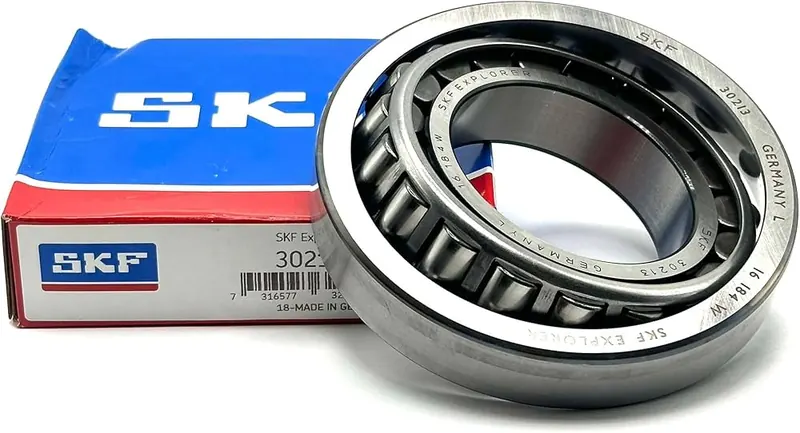

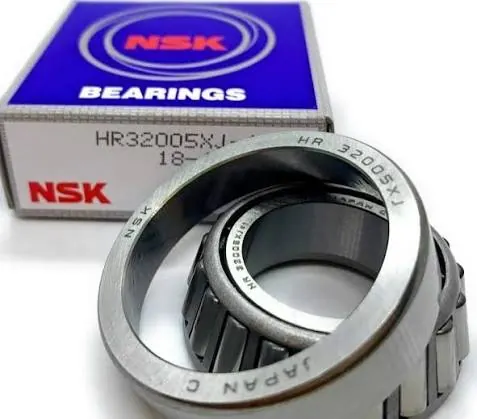

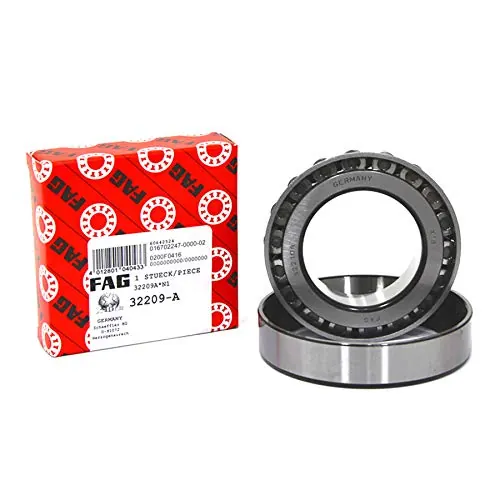

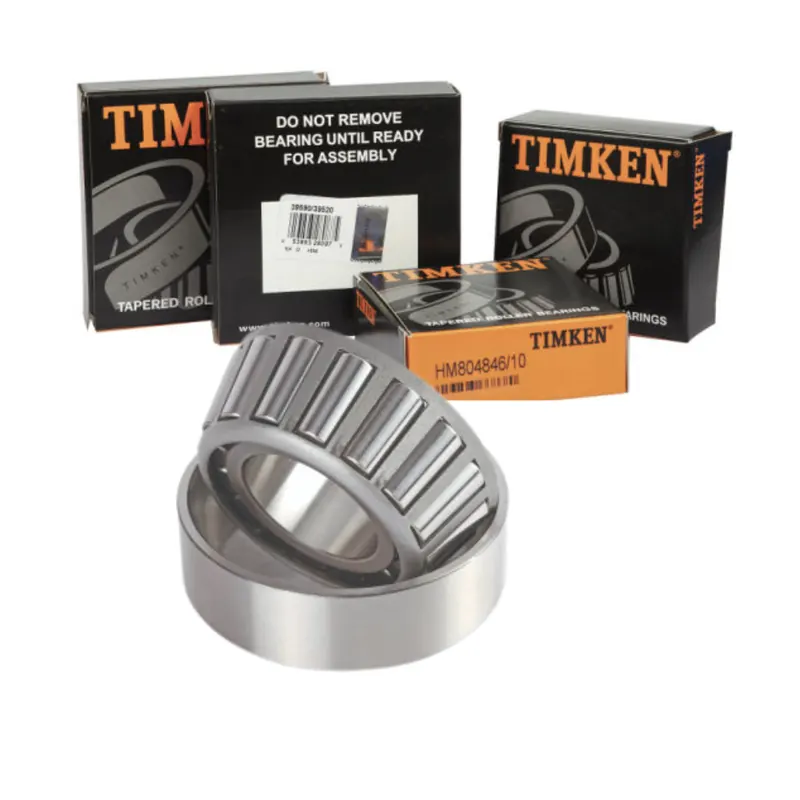

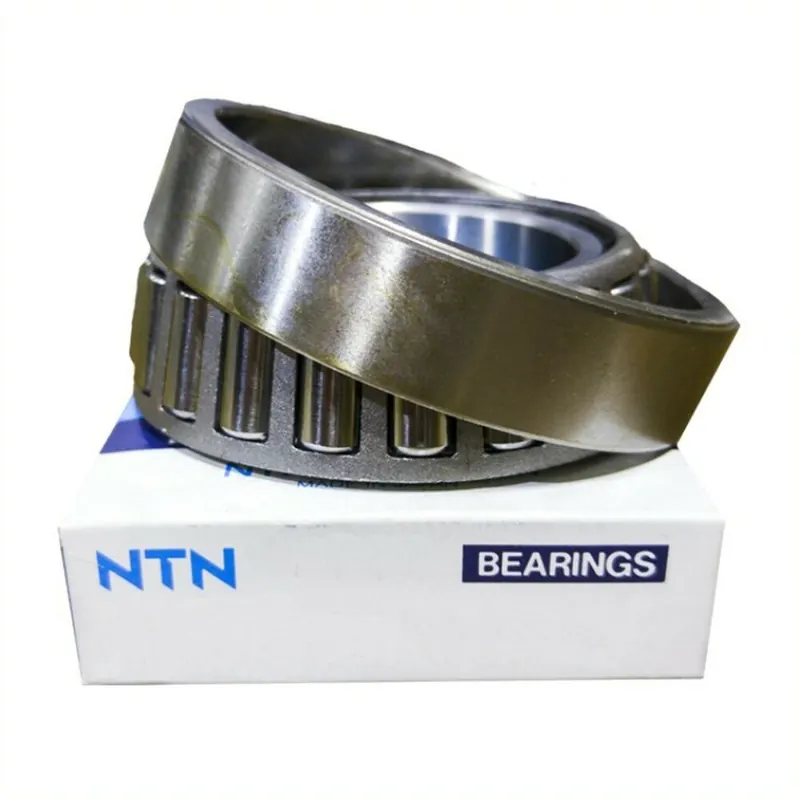

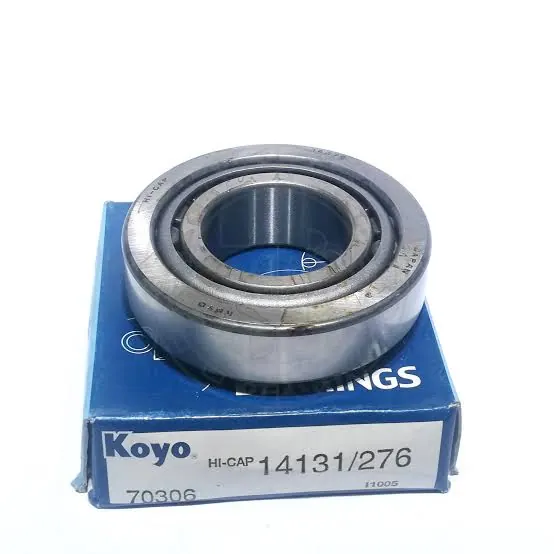

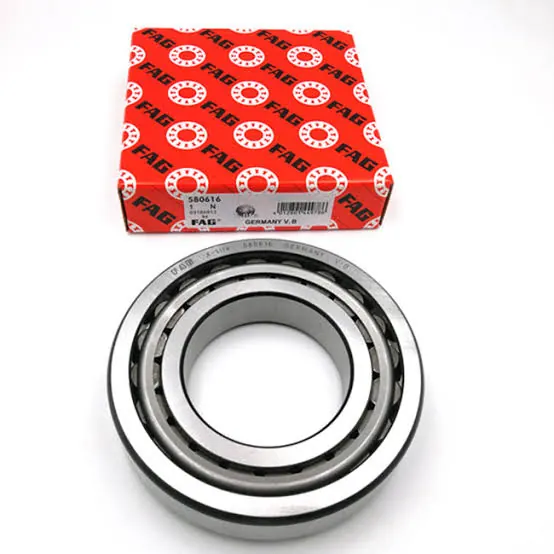

Actual product photographs from our stocked brands and inventory.
Carries heavy radial and axial loads simultaneously through tapered geometry.
Cone and cup mount separately, allowing precise preload adjustment.
Both DIN/ISO metric and inch-series bearings stocked and sourced.
Case-hardened rings and rollers for gearboxes, hubs and axle duty.
Set clearance or preload during assembly for optimum stiffness.
Pure rolling contact and correct setup deliver extended bearing life.
Handles impact loading in vehicle hubs and industrial gearboxes.
Single, double (TDO/TDI) and four-row designs for rolling mills.
32000 and 30300 series for input, intermediate, and output shafts handling combined radial and axial load from helical or bevel gears.
Single and double-row taper roller bearings for truck, tractor, and heavy vehicle front/rear wheel hubs — absorbing both radial (weight) and axial (cornering) forces.
Precision ground taper roller bearings (P5/P4) for manual and CNC machine tool spindles where stiffness and axial accuracy are critical.
Four-row taper roller bearings for hot and cold rolling mill work roll and backup roll positions, handling extreme radial loads under shock conditions.
We supply genuine taper roller bearings from the world's leading manufacturers — with full traceability and warranty.
We stock both metric (DIN/ISO) and imperial (inch) taper roller bearings — covering both modern metric-standard equipment and legacy British/American-standard machinery.
Share the Timken, Koyo, NSK, or any other brand part number and we'll identify the SKF, FAG, or NTN equivalent with pricing and availability within hours.
Common 30200 and 32000 series sizes dispatched within 24 hours from our Mumbai warehouse. Larger or less common sizes sourced within 5–15 working days through our manufacturer supply chain.
As a tapered roller bearing wholesaler serving Pune, and a wholesale importer supplying across India, we support OEMs, distributors and maintenance teams with bulk pricing and standing orders.
From standard Class 0 to higher precision grades for gearboxes and heavy-duty axle applications, matched to your load and speed requirements.
Guidance on correct pairing, preload and mounting for taper roller bearing sets in gearboxes, axles, and heavy rotating machinery.
We supply taper roller bearings to industrial units across Mumbai, Pune, Nashik, Aurangabad and other Maharashtra manufacturing hubs, in addition to PAN-India dispatch.
