4200 and 4300 deep groove plus 5200 and 5300 angular contact double-row series — two rows of load capacity in a single bearing width.
A double-row ball bearing places two rows of balls between a common pair of rings. For the same bore and outside diameter it carries substantially more load than a single-row bearing, and it does so in a package narrower than two separate bearings mounted side by side.
There are two families. The 4200 and 4300 series are double-row deep groove bearings, carrying heavy radial load with axial capacity in both directions. The 5200 and 5300 series are double-row angular contact bearings, which behave like a pre-set back-to-back pair in one part and resist tilting moments as well as combined load.
The practical benefit is design simplicity. One bearing, one seat to machine, one part to order and fit, and a shorter shaft than a two-bearing arrangement would require — which is why they are common in gearboxes, vibrating screens and heavy electric motors.
The variants, series and grades we hold and source for Indian industry.
Double-row deep groove bearing in a light section, for higher radial load than a 6200 in the same envelope. Axial capacity in both directions.
Gearboxes · MotorsHeavier section double-row deep groove bearing for high radial load with shock, where a single-row bearing would be undersized.
Heavy Motors · CrushersDouble-row angular contact bearing behaving as a pre-set back-to-back pair. Takes combined load and resists tilting moments in a single part.
Pumps · Vertical ShaftsHeavier double-row angular contact section for substantial combined radial and axial load in both directions.
Vibrating ScreensRubber seals on both sides, factory greased, for dusty and wet environments where relubrication access is limited.
Vibrators · Outdoor DrivesA filling slot allows a greater number of balls and so higher radial capacity, at the cost of reduced axial load ability in one direction.

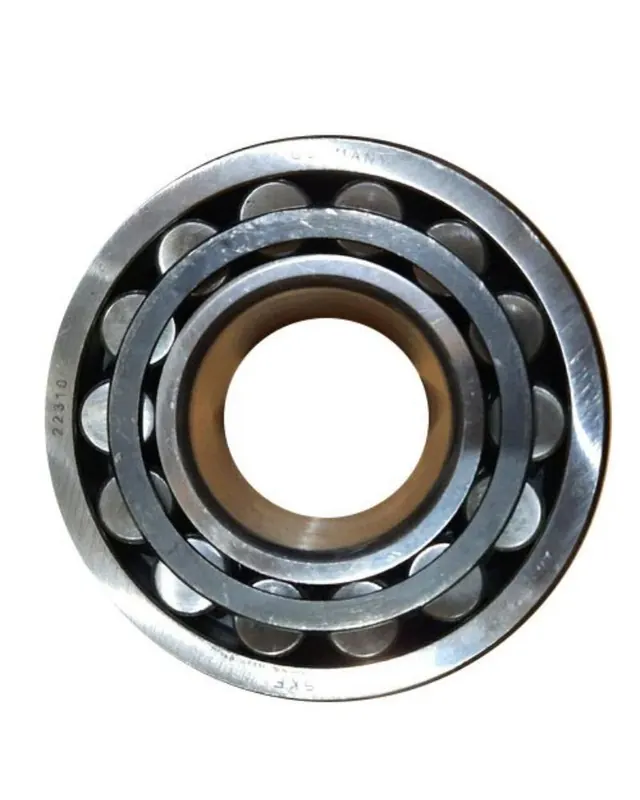

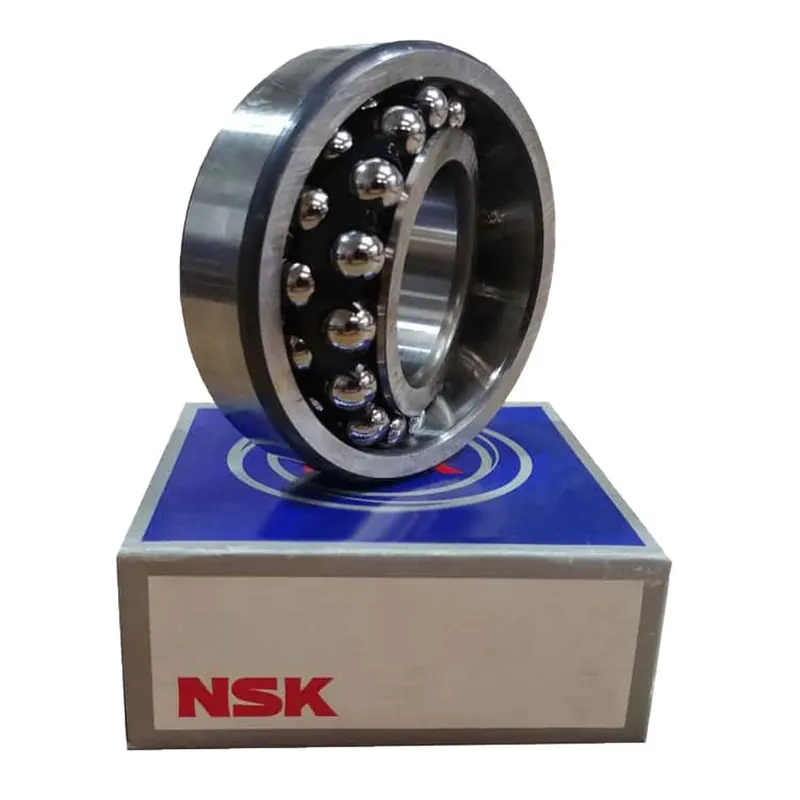

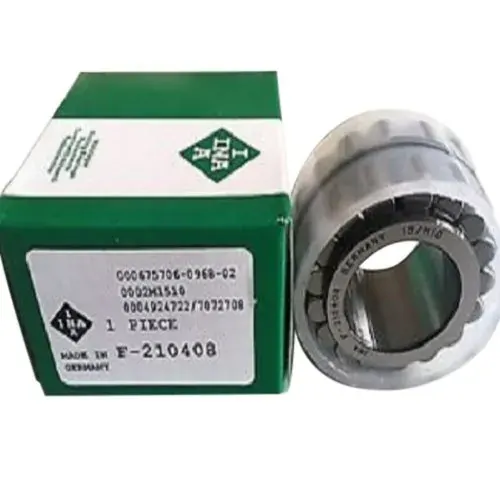

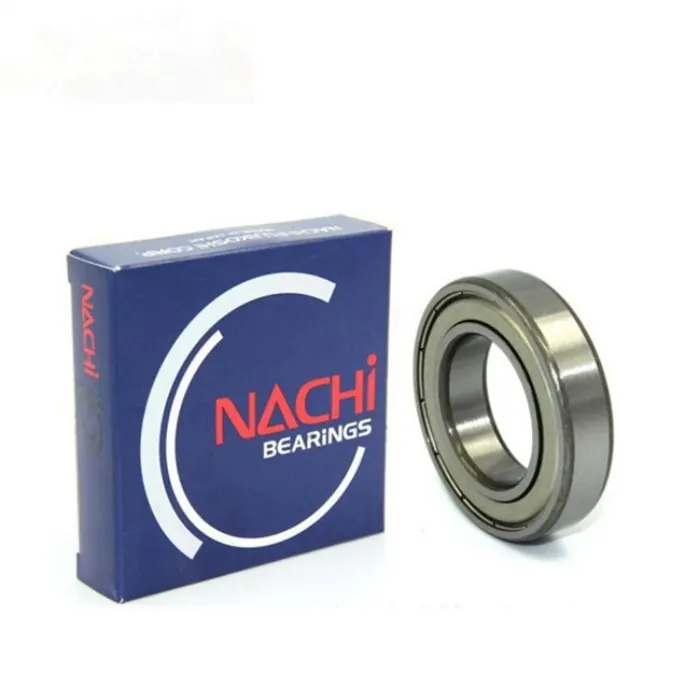

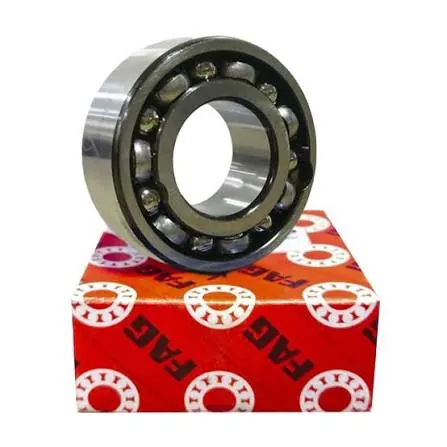

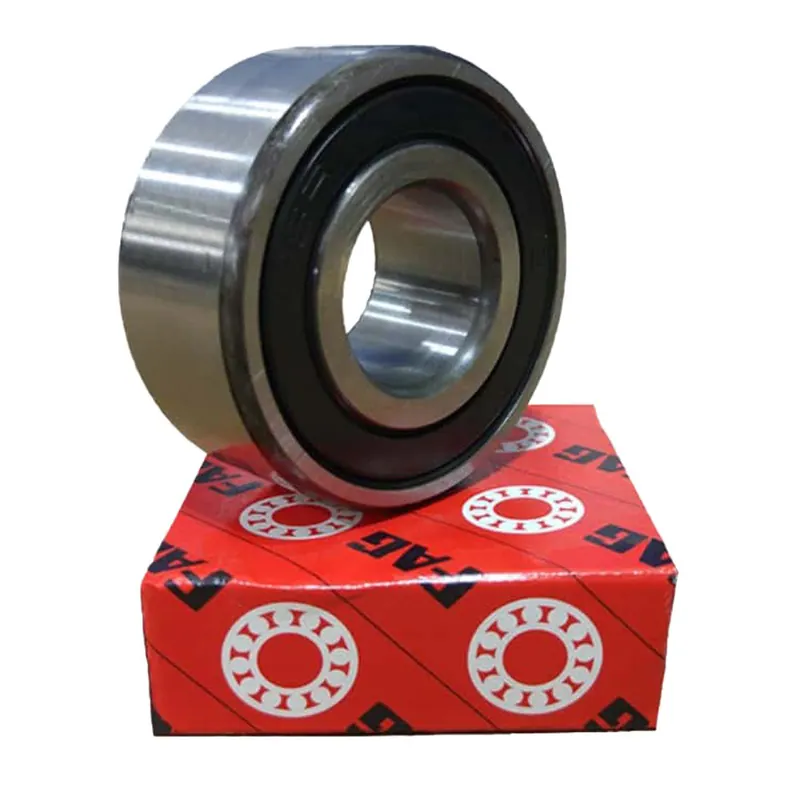

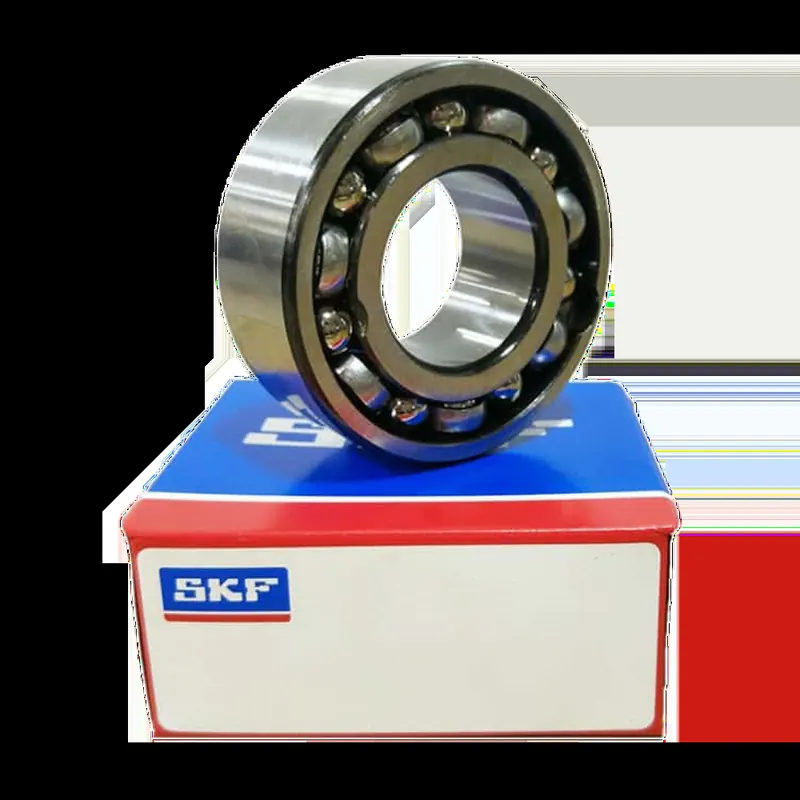

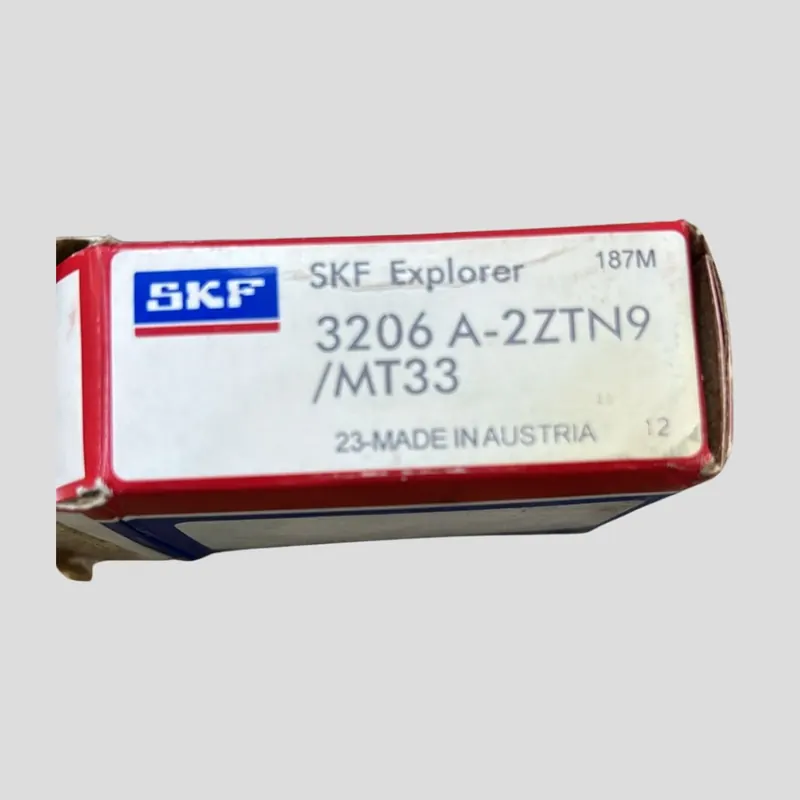

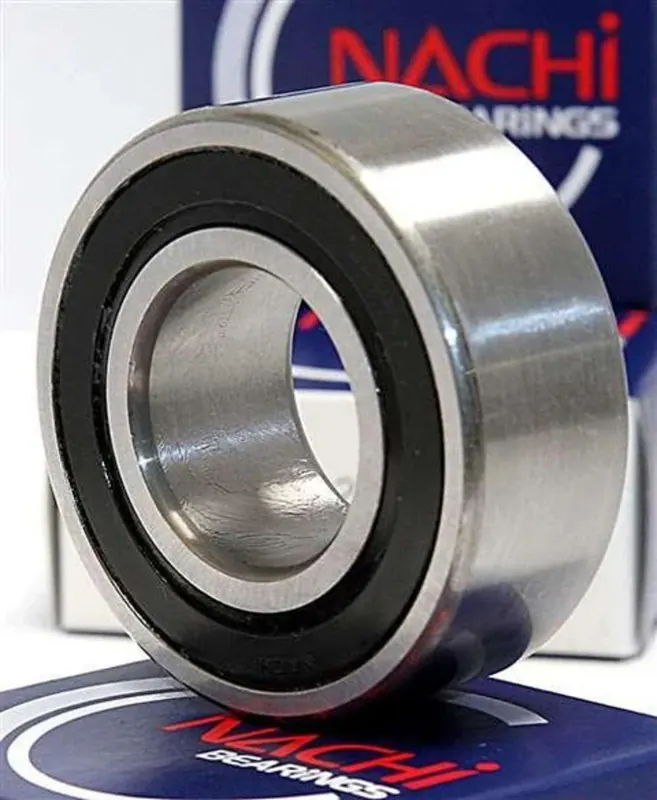

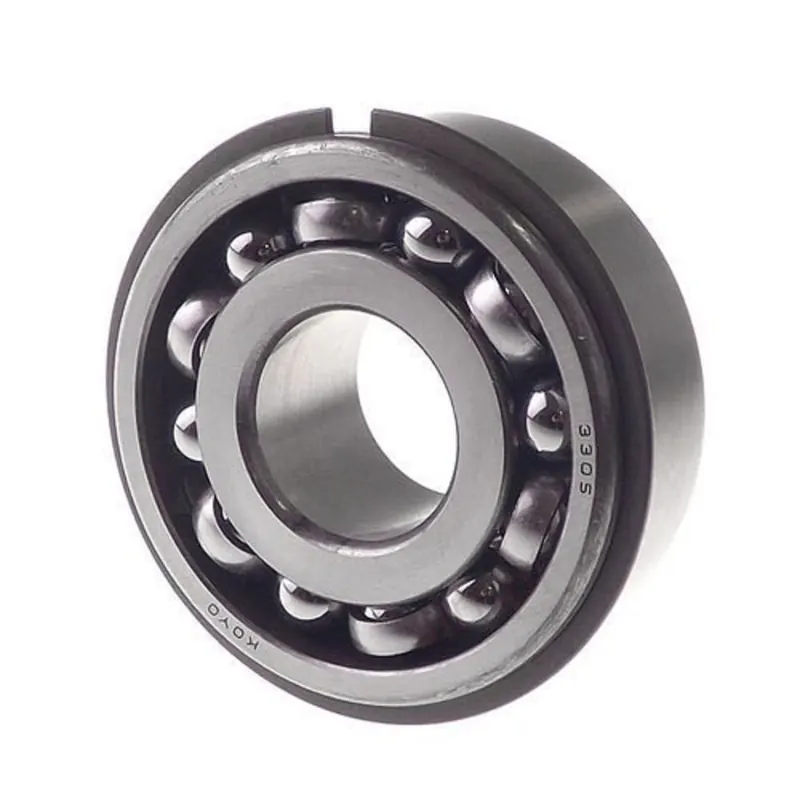

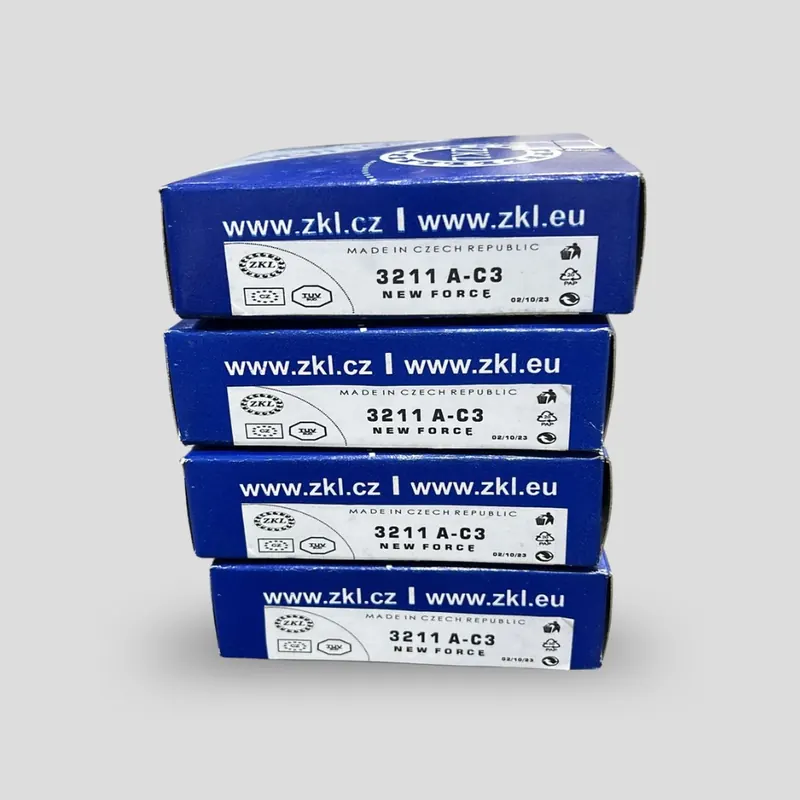

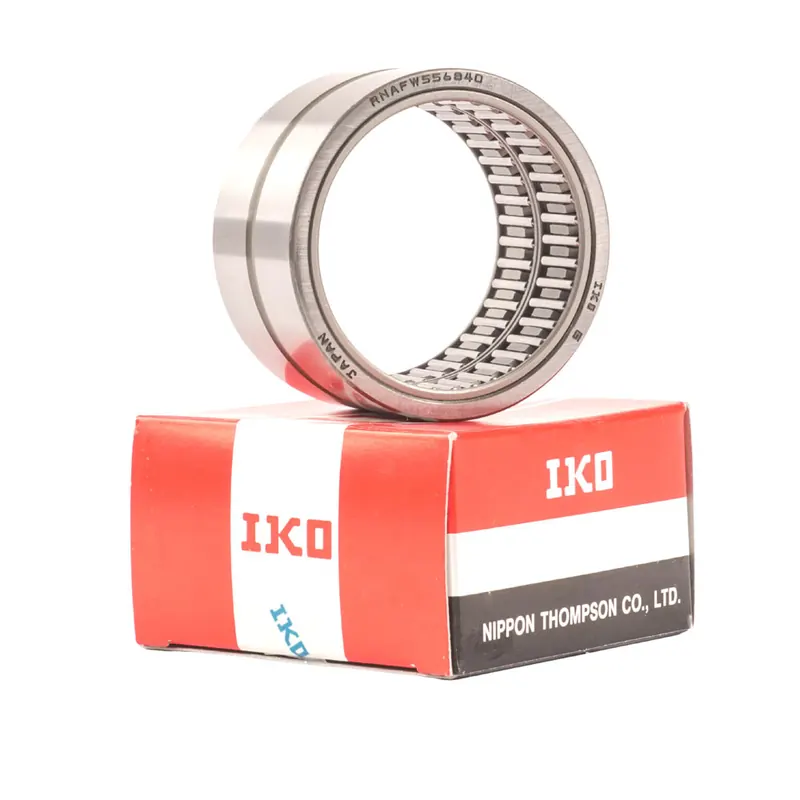

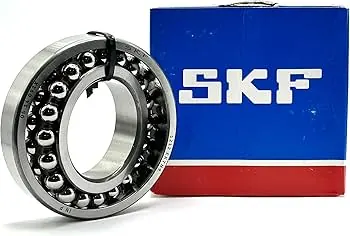

High Radial LoadActual product photographs from our stocked brands and inventory.
Smooth deep-groove geometry minimises rolling resistance for high efficiency.
Low-friction design supports very high rotational speeds in motors and spindles.
C3 clearance and precision grades deliver quiet, vibration-free running.
ABEC/P5 & P6 grades available for spindles and instrument applications.
2RS, ZZ, 2Z and open variants to suit contamination and speed needs.
Chrome-steel and stainless (SS440/316) options for wet environments.
Genuine steel and lubrication for extended L10 bearing life.
Handles combined radial and moderate axial loads across all sizes.
Same-day dispatch from our Mumbai warehouse means a failed bearing doesn't stall your production line for days.
Genuine bearings with correct load rating and lubrication last significantly longer than uncertified alternatives, reducing repeat replacement cost.
Every bearing is sourced through authorized manufacturer channels, protecting your machinery from premature failure caused by fake or sub-standard bearings.
Free technical guidance on bearing type, clearance and seal configuration means you order the correct part the first time, avoiding costly reordering delays.
Standing order and bulk supply arrangements ensure your production planning is never disrupted by stock-outs.
PAN India delivery combined with same-day Mumbai dispatch gives you both national sourcing convenience and local urgency support.
These sizes ship same-day from our Mumbai warehouse. Call or WhatsApp for immediate availability.
| Part No. | Bore | OD | Width | Type | Common Application |
|---|---|---|---|---|---|
| 4204 | 20mm | 47mm | 18mm | Deep Groove | Gearbox shafts |
| 4205 | 25mm | 52mm | 18mm | Deep Groove | Electric motors |
| 4206 | 30mm | 62mm | 20mm | Deep Groove | Conveyor drives |
| 4207 | 35mm | 72mm | 23mm | Deep Groove | Heavy gearboxes |
| 4304 | 20mm | 52mm | 21mm | Deep Groove | Crusher shafts |
| 4305 | 25mm | 62mm | 24mm | Deep Groove | Heavy motors |
| 5204 | 20mm | 47mm | 20.6mm | Angular | Pump shafts |
| 5205 | 25mm | 52mm | 20.6mm | Angular | Vertical pumps |
| 5206 | 30mm | 62mm | 23.8mm | Angular | Vibrating screens |
| 5305 | 25mm | 62mm | 25.4mm | Angular | Heavy combined load |
| Specification | Details |
|---|---|
| Series Stocked | 4200, 4300 (deep groove); 5200, 5300 (angular contact) |
| Bore Range | 10 mm to 120 mm |
| Load Direction | Heavy radial plus axial in both directions |
| Material | Chrome steel (SUJ2 / GCr15) |
| Cage | Pressed steel or polyamide depending on series and speed |
| Closure Types | Open and 2RS sealed |
| Internal Clearance | CN standard; C3 available for warm running |
| Contact Angle (5200/5300) | Nominally 30°, functioning as a pre-set back-to-back pair |
| Operating Temperature | -30 °C to +120 °C standard |
