7200 and 7300 series in standard and P4/P5 precision grades, supplied singly or in matched pairs for machine tool spindles.
An angular contact ball bearing has raceways offset relative to each other so the line of contact between ball and ring runs at an angle — typically 15°, 25°, 30° or 40° — to the bearing axis. That angle is what gives the bearing its high axial load capacity in one direction.
Because thrust is only carried one way, these bearings are normally mounted in pairs: back-to-back (DB) for rigidity against tilting moments, face-to-face (DF) where alignment error must be absorbed, or tandem (DT) where axial load in a single direction needs sharing across two bearings.
A larger contact angle raises axial capacity but lowers permissible speed. A 15° bearing suits a high-speed grinding spindle; a 40° bearing suits a screw-down or heavily thrust-loaded pump. We stock the 7200 and 7300 series and can supply matched sets to the required preload class.
The variants, series and grades we hold and source for Indian industry.
Single-row light section angular contact bearings for moderate combined loads. The standard choice for pump shafts, small gearboxes and light spindle duty.
Pumps · Small GearboxesHeavier section with higher axial and radial capacity for the same bore, used where thrust loading is substantial or shock is present.
Heavy Pumps · GearboxesContact lines diverge outward, giving a wide effective support base and high resistance to tilting moments. The usual arrangement for machine tool spindles.
Machine Tool SpindlesContact lines converge, giving a narrower support base that tolerates more shaft-to-housing misalignment than a DB set.
Misaligned ShaftsBoth bearings take thrust in the same direction, roughly doubling one-way axial capacity. A third bearing is needed to locate the shaft the other way.
Heavy One-Way ThrustTighter running accuracy and controlled preload for spindle applications where runout must be held within a few microns. Supplied as matched sets.

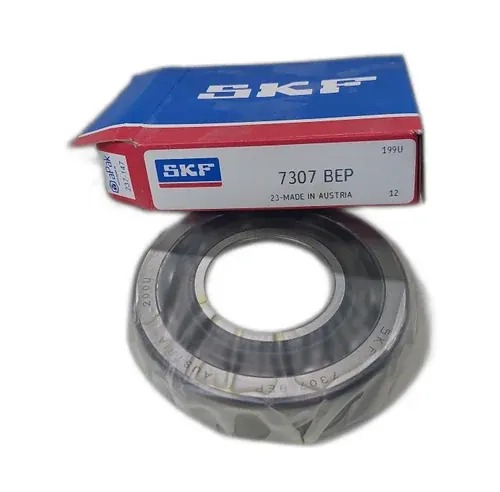

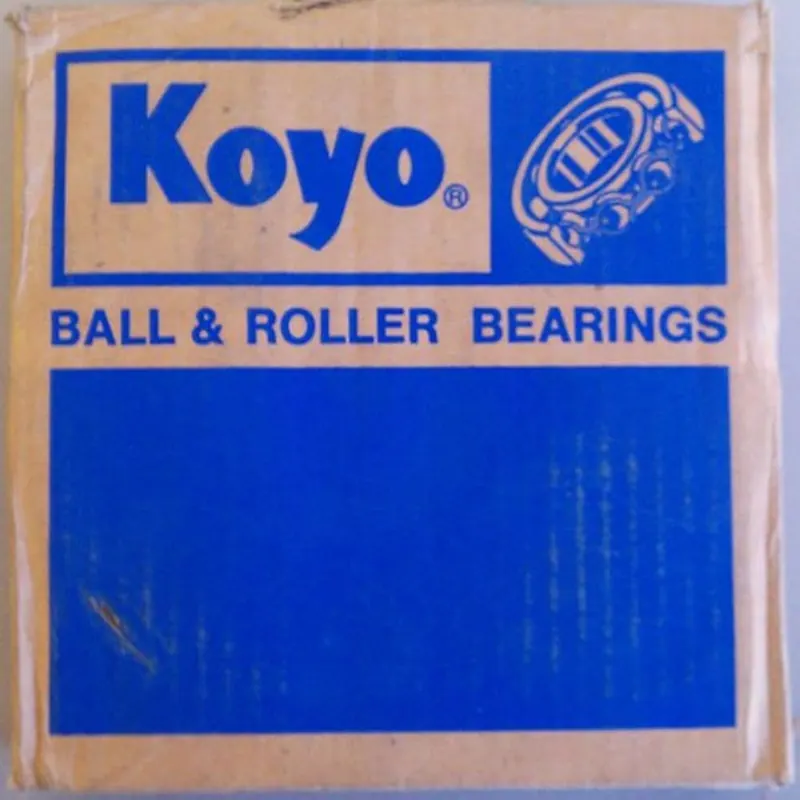

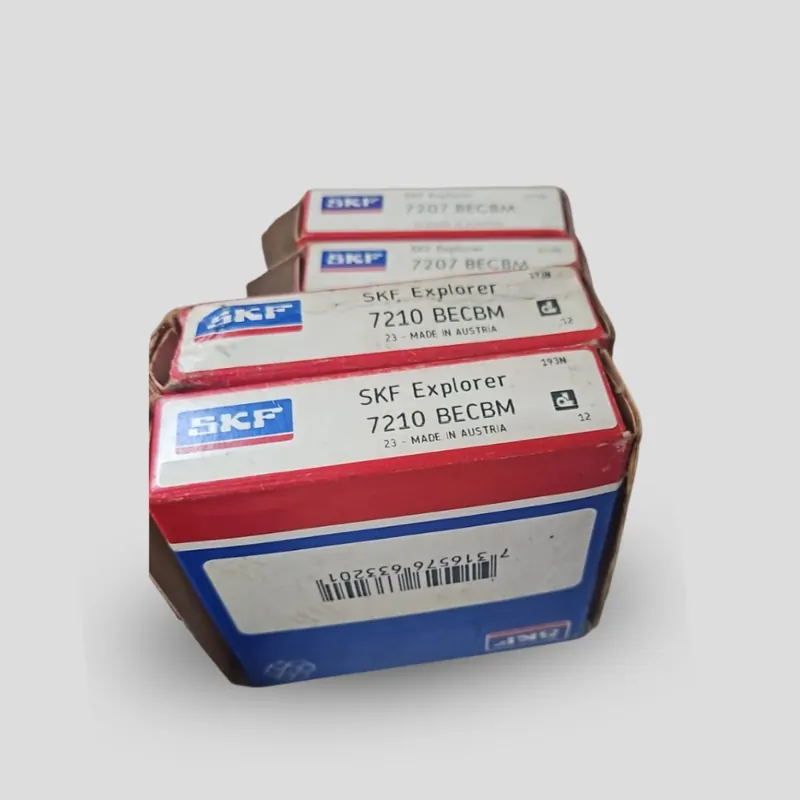

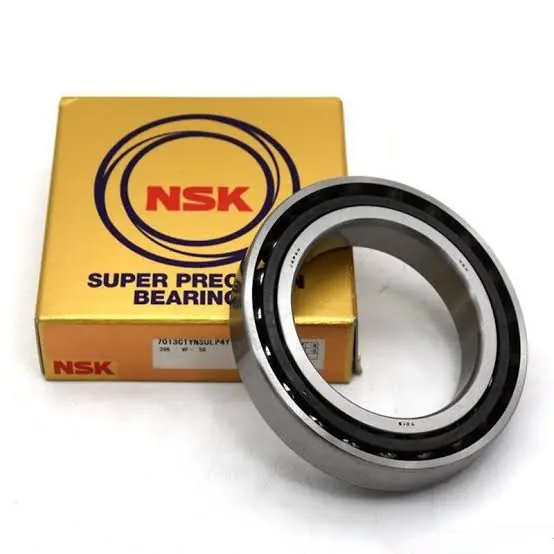

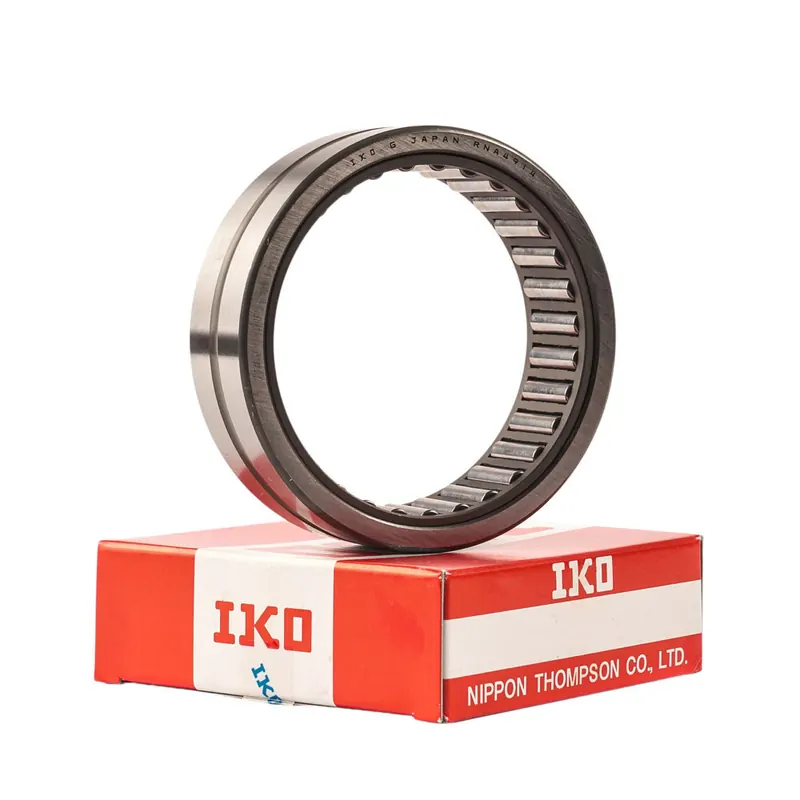

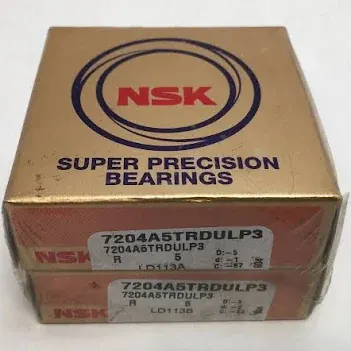

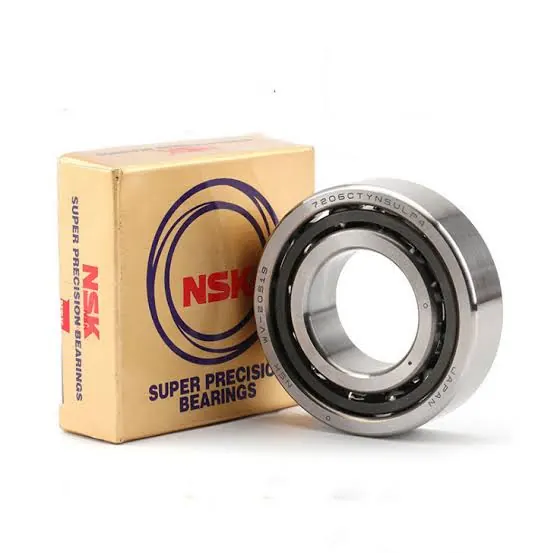

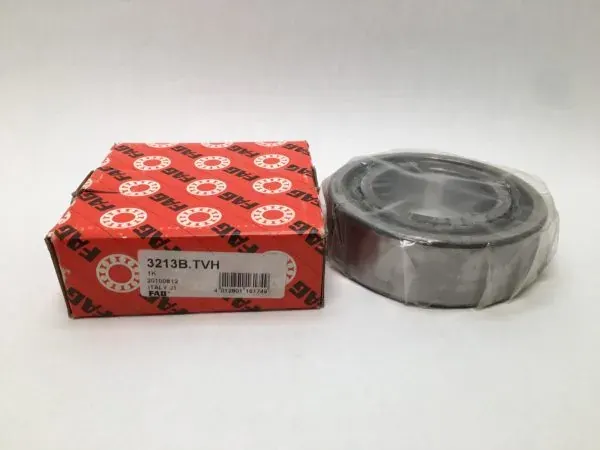

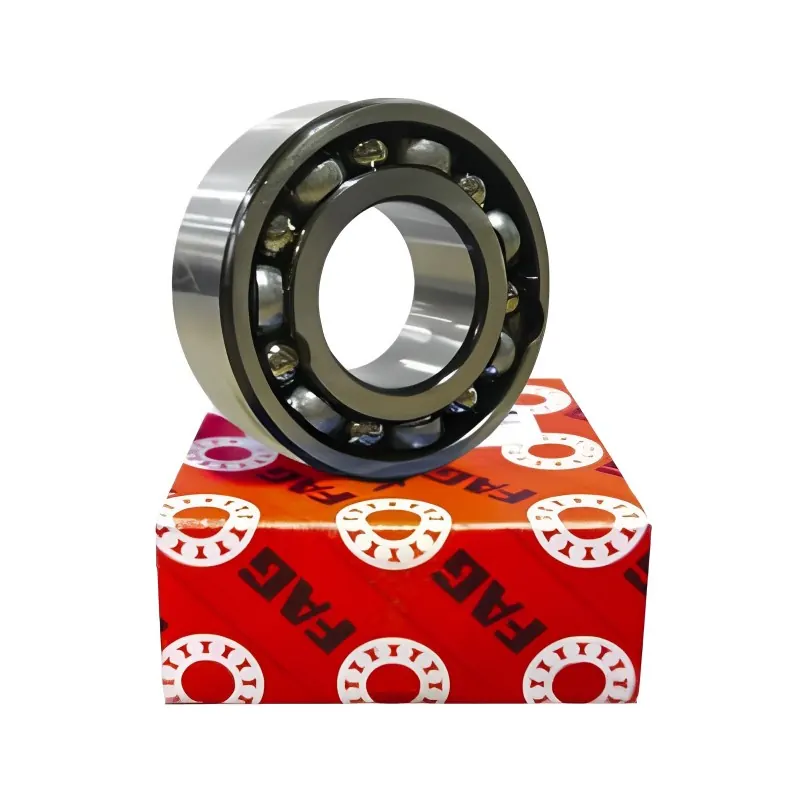

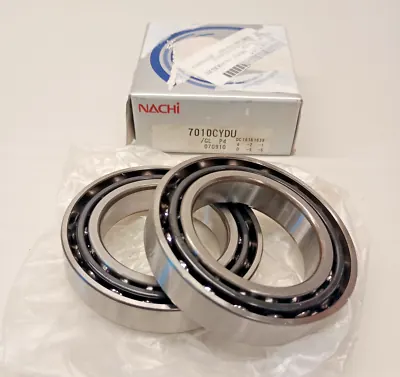

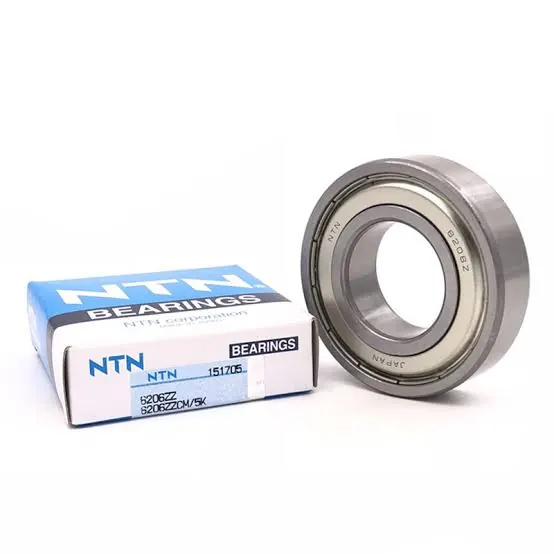

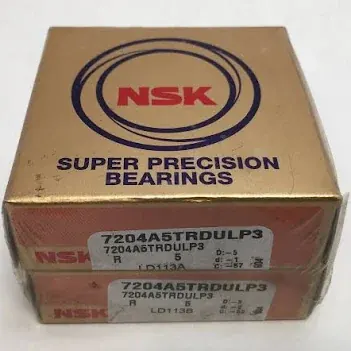

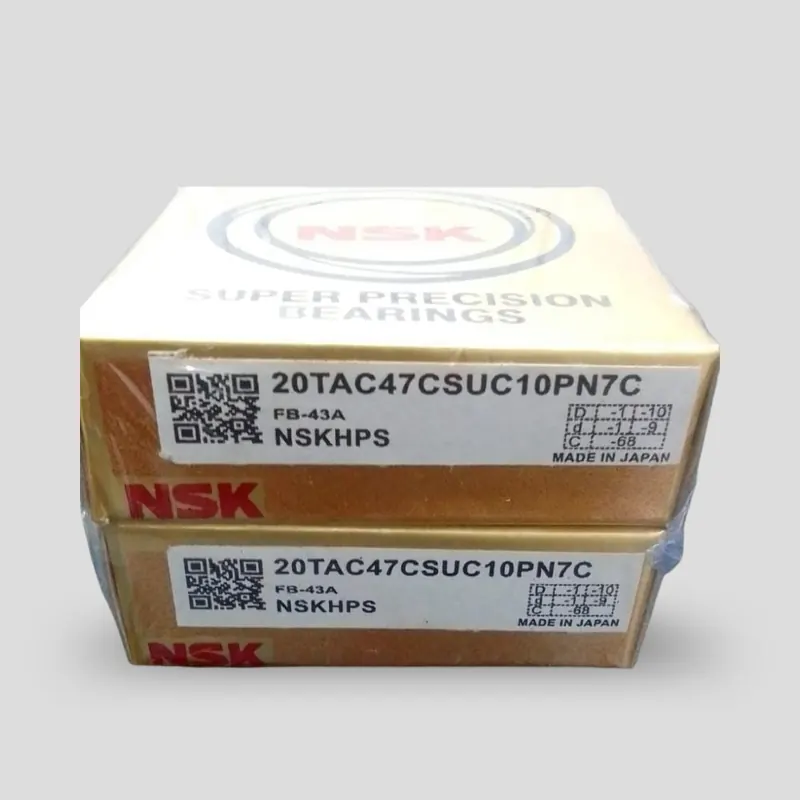

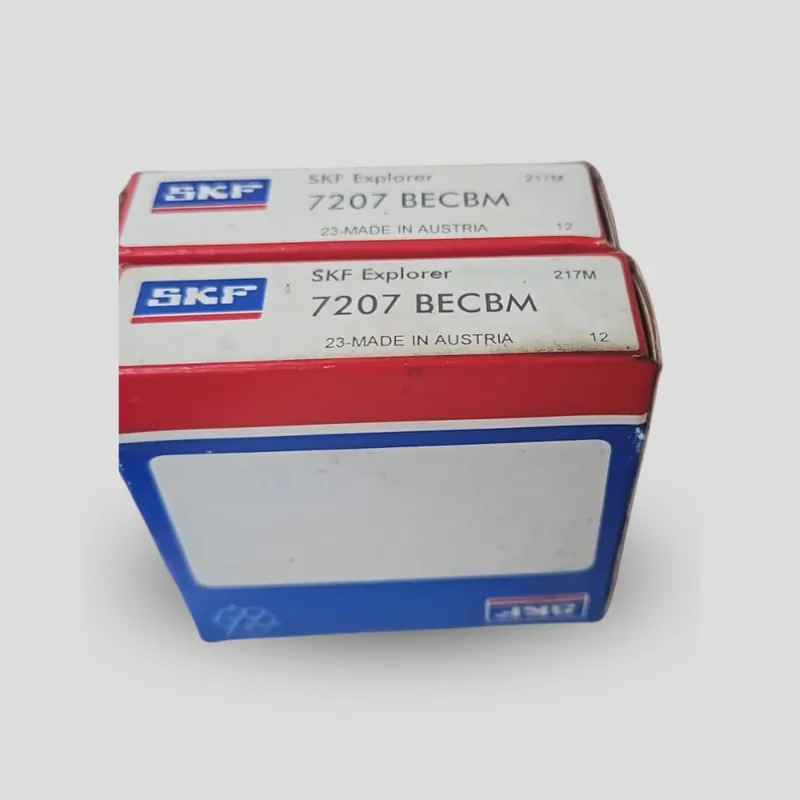

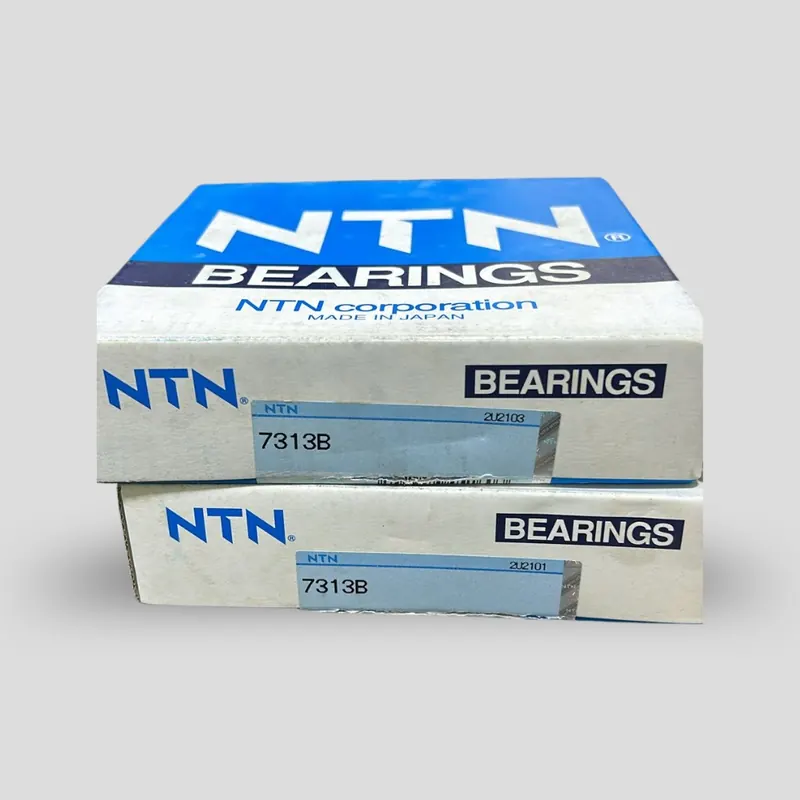

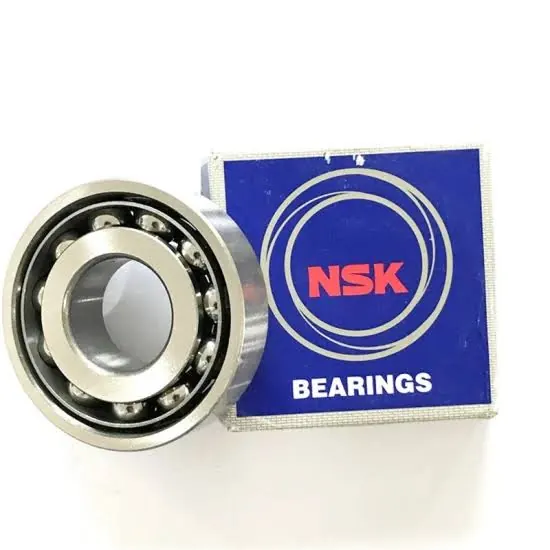

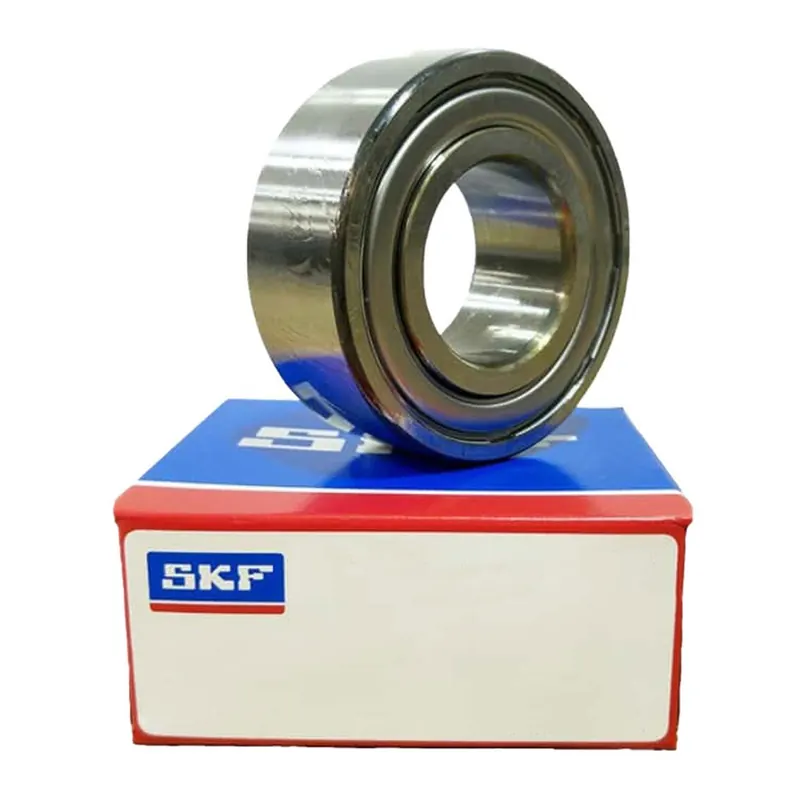

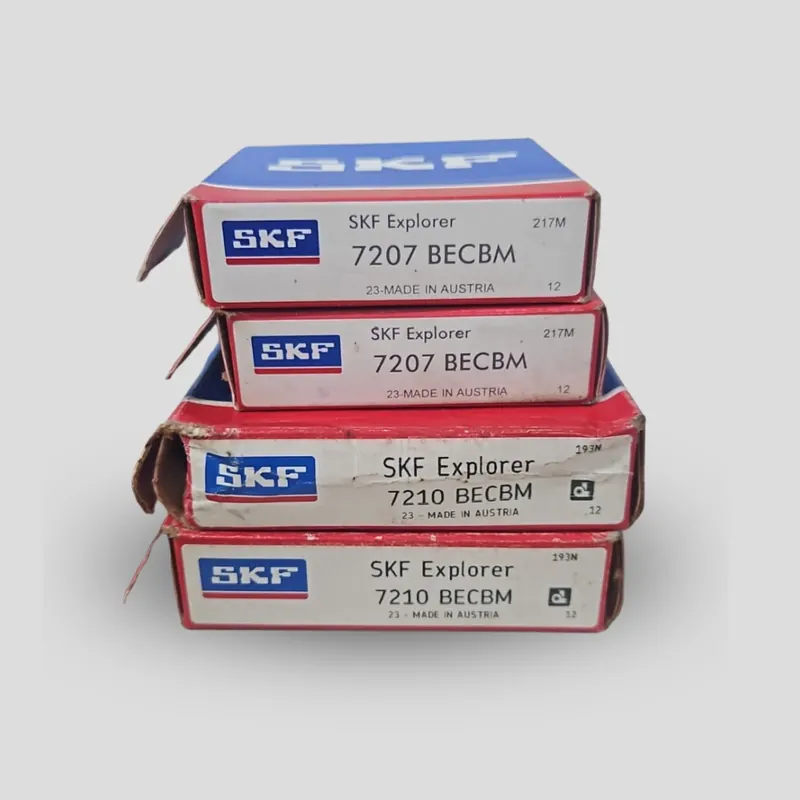

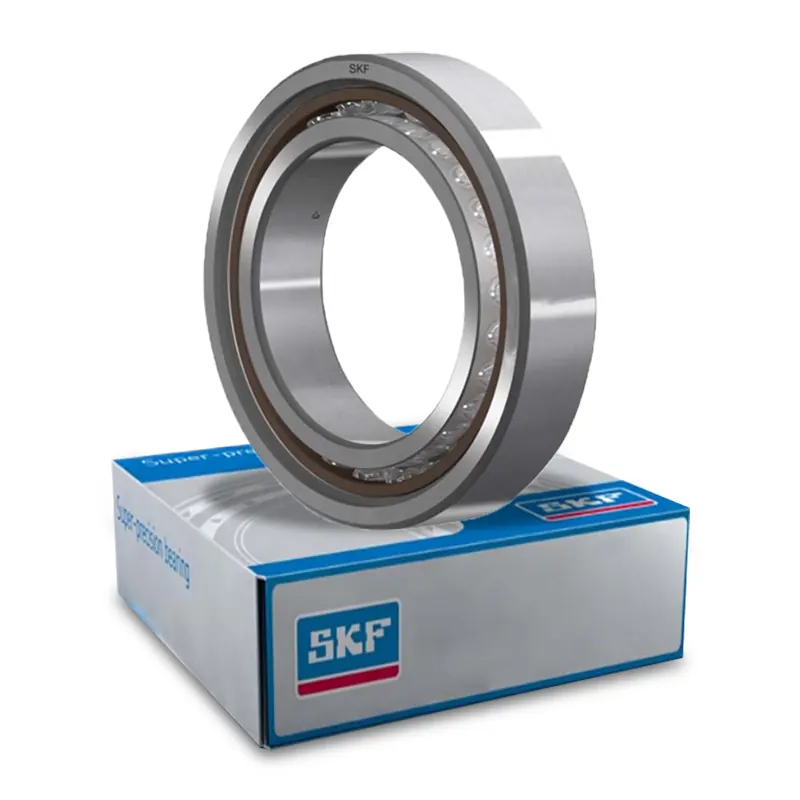

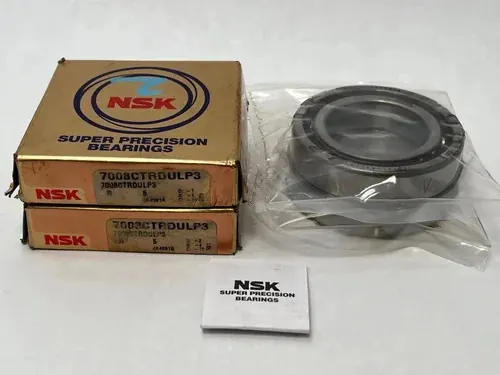

CNC Spindles · GrindersActual product photographs from our stocked brands and inventory.
Smooth deep-groove geometry minimises rolling resistance for high efficiency.
Low-friction design supports very high rotational speeds in motors and spindles.
C3 clearance and precision grades deliver quiet, vibration-free running.
ABEC/P5 & P6 grades available for spindles and instrument applications.
2RS, ZZ, 2Z and open variants to suit contamination and speed needs.
Chrome-steel and stainless (SS440/316) options for wet environments.
Genuine steel and lubrication for extended L10 bearing life.
Handles combined radial and moderate axial loads across all sizes.
Same-day dispatch from our Mumbai warehouse means a failed bearing doesn't stall your production line for days.
Genuine bearings with correct load rating and lubrication last significantly longer than uncertified alternatives, reducing repeat replacement cost.
Every bearing is sourced through authorized manufacturer channels, protecting your machinery from premature failure caused by fake or sub-standard bearings.
Free technical guidance on bearing type, clearance and seal configuration means you order the correct part the first time, avoiding costly reordering delays.
Standing order and bulk supply arrangements ensure your production planning is never disrupted by stock-outs.
PAN India delivery combined with same-day Mumbai dispatch gives you both national sourcing convenience and local urgency support.
These sizes ship same-day from our Mumbai warehouse. Call or WhatsApp for immediate availability.
| Part No. | Bore | OD | Width | Type | Common Application |
|---|---|---|---|---|---|
| 7200 B | 10mm | 30mm | 9mm | 40° Single | Pump shafts |
| 7202 B | 15mm | 35mm | 11mm | 40° Single | Small gearboxes |
| 7204 B | 20mm | 47mm | 14mm | 40° Single | Pumps, compressors |
| 7205 C | 25mm | 52mm | 15mm | 15° Single | High-speed spindles |
| 7206 AC | 30mm | 62mm | 16mm | 25° Single | Machine tools |
| 7207 B | 35mm | 72mm | 17mm | 40° Single | Heavy pumps |
| 7208 C/DB | 40mm | 80mm | 18mm | 15° Matched | CNC spindles |
| 7305 B | 25mm | 62mm | 17mm | 40° Single | Gearbox thrust |
| 7306 AC | 30mm | 72mm | 19mm | 25° Single | Vertical pumps |
| 7308 B/DB | 40mm | 90mm | 23mm | 40° Matched | Screw-down drives |
| Specification | Details |
|---|---|
| Series Stocked | 7200 and 7300, single row and matched pairs |
| Contact Angles | 15° (C), 25° (AC), 30°, 40° (B) |
| Bore Range | 10 mm to 200 mm |
| Material | Chrome steel (SUJ2 / GCr15); ceramic hybrid on request |
| Cage | Pressed steel, machined brass or polyamide depending on speed class |
| Arrangements | DB back-to-back, DF face-to-face, DT tandem, universal matchable |
| Precision Grade | P0 standard; P6, P5 and P4 for spindle duty |
| Preload Classes | Light, medium and heavy — specified when ordering matched sets |
| Operating Temperature | -30 °C to +120 °C standard |
