NU, NJ, N, NUP and NF series in single and double row — line contact geometry for radial loads a ball bearing cannot carry.
A cylindrical roller bearing carries load through rollers that contact the raceway along a line rather than at a point. That line contact spreads the load over a far larger area than a ball can, which is why a cylindrical roller bearing of a given size carries substantially more radial load than the equivalent ball bearing.
The trade-off is axial capacity. Because the rollers run between flanged and unflanged rings, most cylindrical roller bearings carry little or no thrust. The ring configuration determines this: NU and N types float axially, while NJ, NUP and NF types locate the shaft in one or both directions.
The separable design is a practical advantage on the shop floor. Inner and outer rings can be mounted independently, which makes fitting straightforward where both are an interference fit — a common requirement in gearboxes, electric motors and rolling mill applications.
Flange configurations and series we hold and source for Indian industry.
Two integral flanges on the inner ring, none on the outer. The rings float axially relative to each other, so the bearing acts purely as a non-locating radial support and accommodates shaft expansion.
Gearboxes · MotorsTwo flanges on the outer ring and one on the inner, so the bearing locates the shaft axially in one direction while carrying heavy radial load.
Single-Direction LocationTwo flanges on the outer ring, none on the inner. The mirror image of the NU arrangement, used where the inner ring must be free to move axially.
Thermal ExpansionTwo integral flanges on the inner ring plus a loose flange washer, giving axial location in both directions. The usual choice for a locating bearing position.
Locating PositionsOne flange on the outer ring and two on the inner, providing one-direction axial location in the opposite sense to the NJ.
Reverse LocationTwo rows of rollers for very high radial capacity and running accuracy in a compact width. Standard on machine tool spindles and rolling mill roll necks.

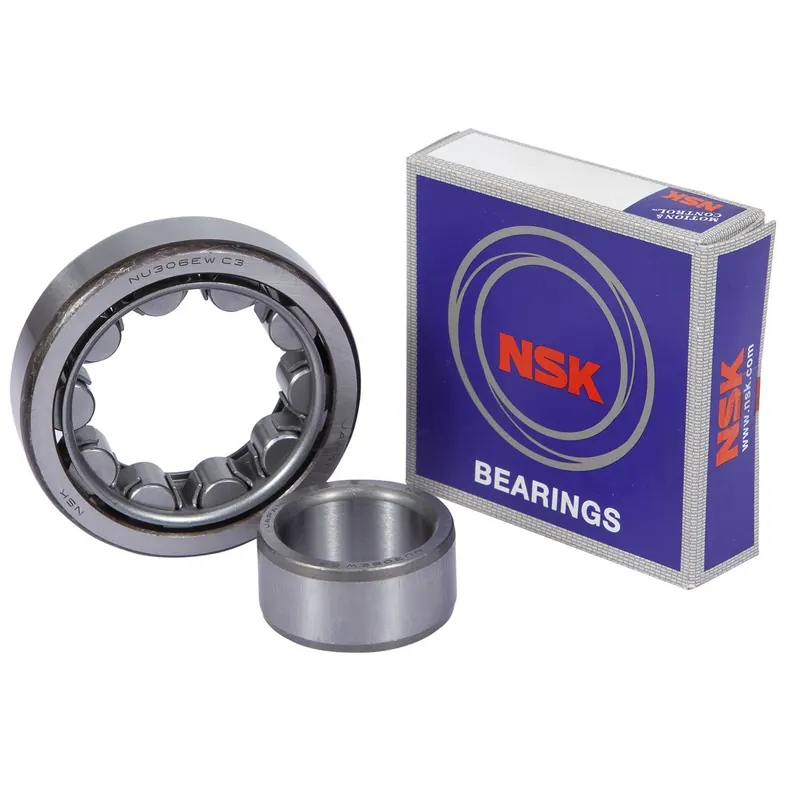

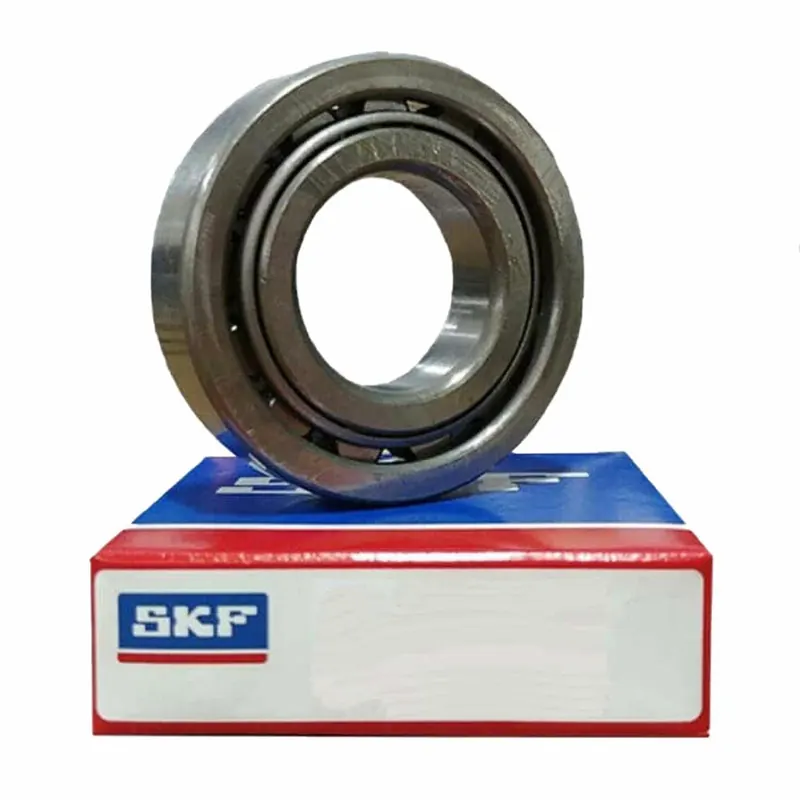

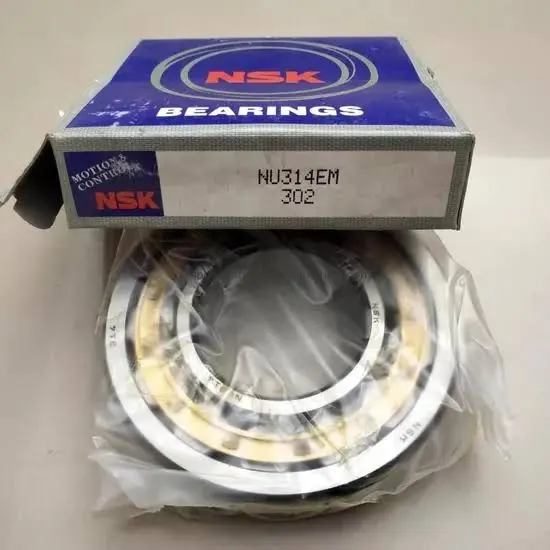

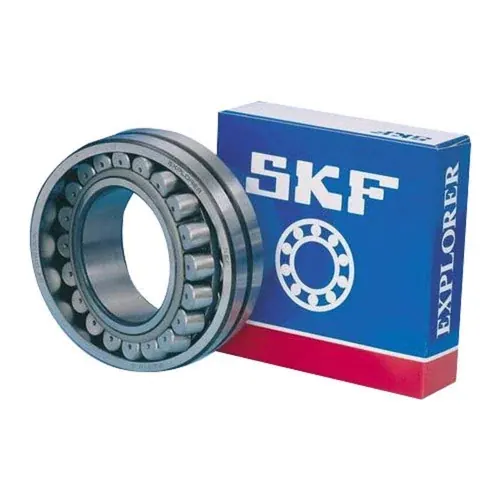

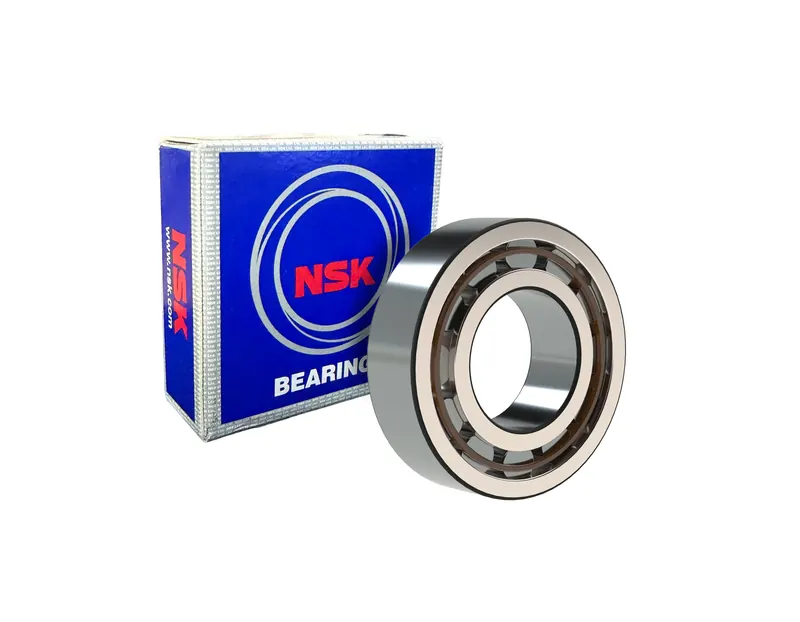

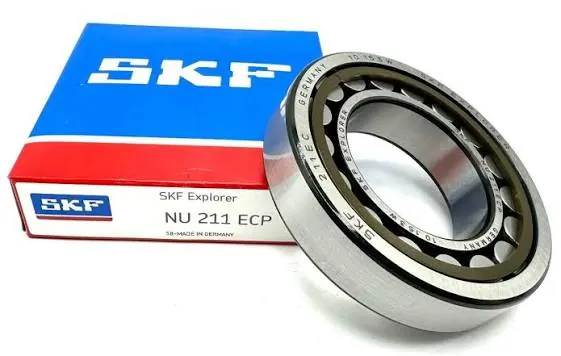

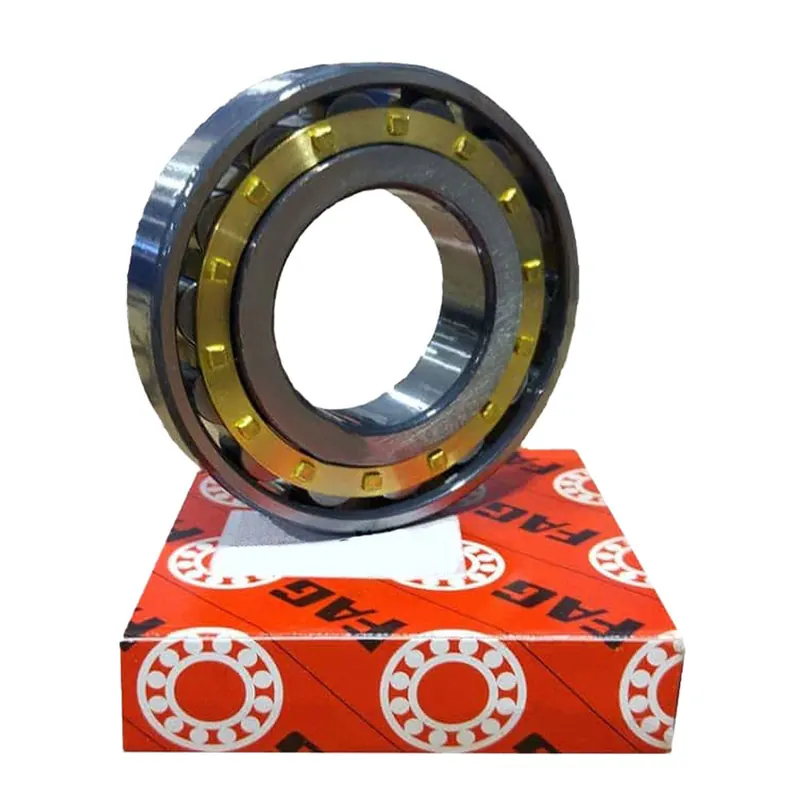

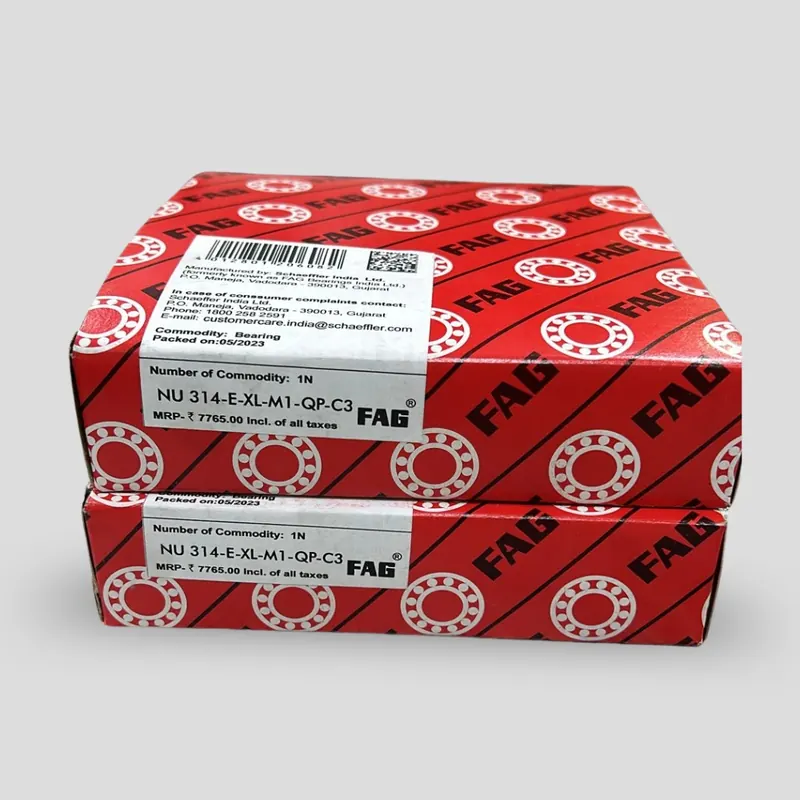

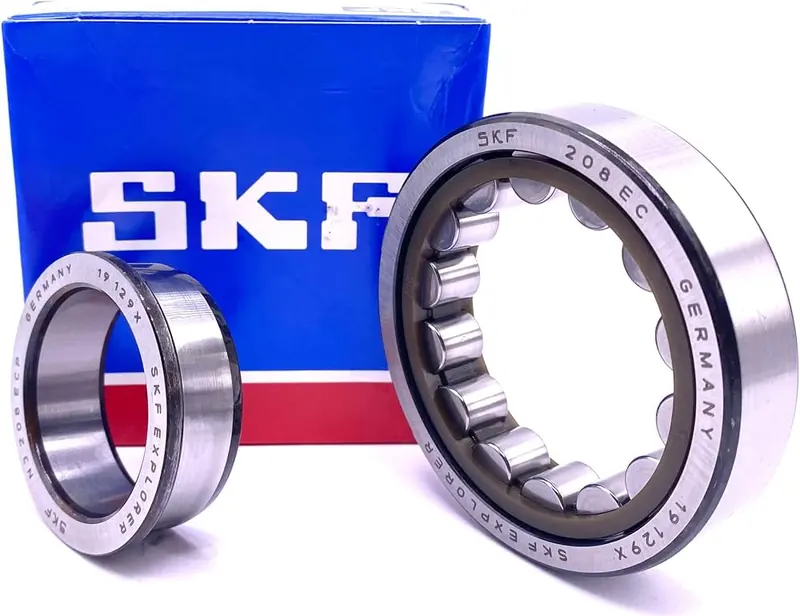

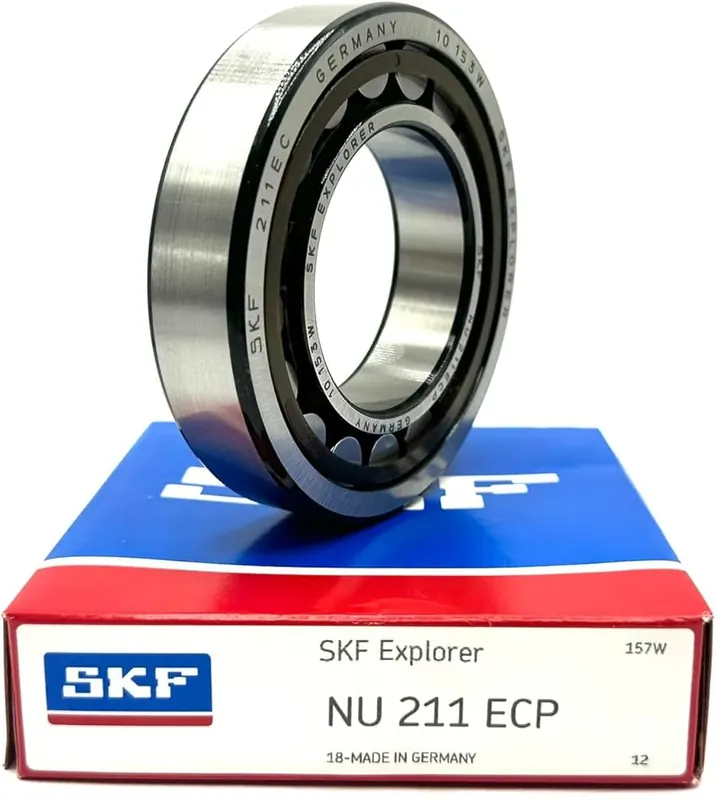

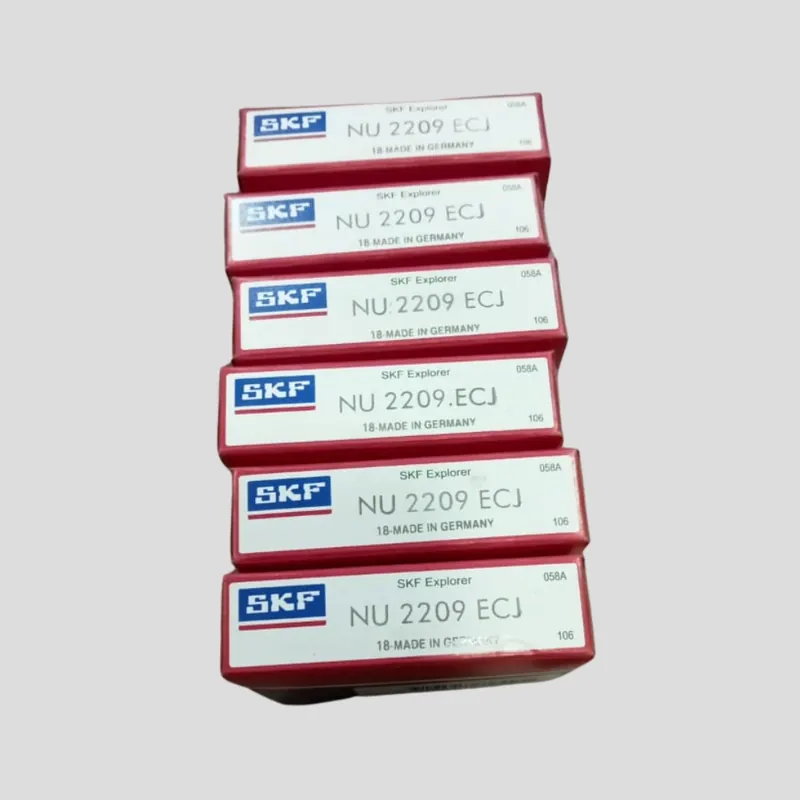

Machine Tools · Rolling MillsActual product photographs from our stocked brands and inventory.
Smooth deep-groove geometry minimises rolling resistance for high efficiency.
Low-friction design supports very high rotational speeds in motors and spindles.
C3 clearance and precision grades deliver quiet, vibration-free running.
ABEC/P5 & P6 grades available for spindles and instrument applications.
2RS, ZZ, 2Z and open variants to suit contamination and speed needs.
Chrome-steel and stainless (SS440/316) options for wet environments.
Genuine steel and lubrication for extended L10 bearing life.
Handles combined radial and moderate axial loads across all sizes.
Same-day dispatch from our Mumbai warehouse means a failed bearing doesn't stall your production line for days.
Genuine bearings with correct load rating and lubrication last significantly longer than uncertified alternatives, reducing repeat replacement cost.
Every bearing is sourced through authorized manufacturer channels, protecting your machinery from premature failure caused by fake or sub-standard bearings.
Free technical guidance on bearing type, clearance and seal configuration means you order the correct part the first time, avoiding costly reordering delays.
Standing order and bulk supply arrangements ensure your production planning is never disrupted by stock-outs.
PAN India delivery combined with same-day Mumbai dispatch gives you both national sourcing convenience and local urgency support.
Call or WhatsApp for immediate availability.
| Part No. | Bore | OD | Width | Type | Common Application |
|---|---|---|---|---|---|
| NU 205 | 25mm | 52mm | 15mm | NU — Floating | Electric motors |
| NU 206 | 30mm | 62mm | 16mm | NU — Floating | Gearbox shafts |
| NU 207 | 35mm | 72mm | 17mm | NU — Floating | Pumps, blowers |
| NU 208 | 40mm | 80mm | 18mm | NU — Floating | Conveyor drives |
| NJ 206 | 30mm | 62mm | 16mm | NJ — One-Way | Located motor ends |
| NJ 208 | 40mm | 80mm | 18mm | NJ — One-Way | Gear drives |
| NU 305 | 25mm | 62mm | 17mm | NU — Heavy | Crushers, mills |
| NU 306 | 30mm | 72mm | 19mm | NU — Heavy | Heavy gearboxes |
| NUP 208 | 40mm | 80mm | 18mm | NUP — Both Ways | Locating positions |
| NN 3020 | 100mm | 150mm | 37mm | Double Row | Machine tool spindles |
| Specification | Details |
|---|---|
| Series Stocked | NU, NJ, N, NUP and NF; NN and NNU double row |
| Bore Range | 20 mm to 320 mm |
| Load Direction | Heavy radial; axial capacity depends on flange configuration |
| Material | Chrome steel (SUJ2 / GCr15), case-hardened options available |
| Cage | Pressed steel, machined brass or polyamide depending on series and speed |
| Precision Grade | P0 standard; P6 and P5 for machine tool spindles |
| Internal Clearance | CN standard; C3 and C4 for heat and interference-fit conditions |
| Design | Separable — inner and outer rings mount independently |
| Operating Temperature | -30 °C to +120 °C standard; higher with heat stabilisation |
